IOC4T 200-560-000-061 Input/Output card

IOC4T 200-560-000-061 Input/Output card

Description

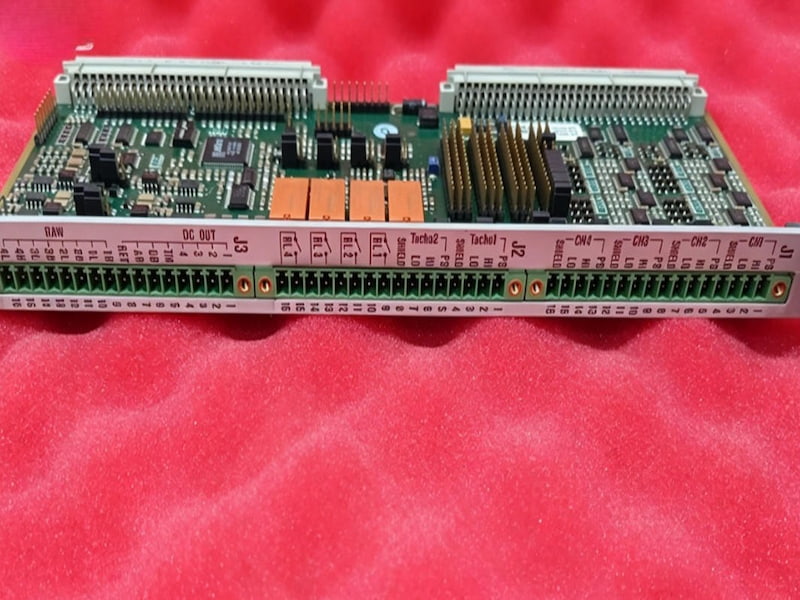

IOC4T (Material Number 200-560-000-061) is a rear-terminal type IO interface card used for the protection card of the complete unit. It is assembled in pairs in the standard monitoring frame and directly connects to various on-site sensors for vibration, eddy current, and rotational speed, transmitting the original measurement signals to the front-end protection card for processing. It integrates surge and electromagnetic isolation protection for all channels, isolating the on-site line interference from damaging the core computing board.

The module is equipped with 4 standard analog output channels and 4 built-in alarm relays, capable of outputting 0-10V or 4-20mA standardized measurement signals to DCS/PLC, as well as outputting switch quantity alarm contacts; it also has 32 programmable digital alarm signals, which can be expanded to external relay cards, supporting hot-swappable insertion while the frame is powered on, and is widely used in steam turbine and compressor unit mechanical protection cabinets.

Features

Rear-mounted IO card for the rack, paired one-to-one with the protection card, with high-speed bidirectional communication via IP bus

4 channels of dynamic signals + 2 channels of rotational speed key-phase input, compatible with mainstream industrial vibration and displacement sensors

4 channels of switchable 0-10V/4-20mA analog output, 4 channels of software-programmable alarm relays

Full-channel EMC and surge protection, suitable for complex electromagnetic conditions in power plants and oil and gas industries

48-bit screw-fastening terminals, ensuring secure wiring, convenient on-site disassembly and maintenance

32 channels of collector-open-circuit alarm outputs, capable of connecting external expansion relay modules

Supports hot-swappable rack without stopping the machine, without interrupting the protection logic of the unit

-20°C to 65°C wide temperature range operation, standard 6U rack size compatible with complete cabinets

Technical Specifications
