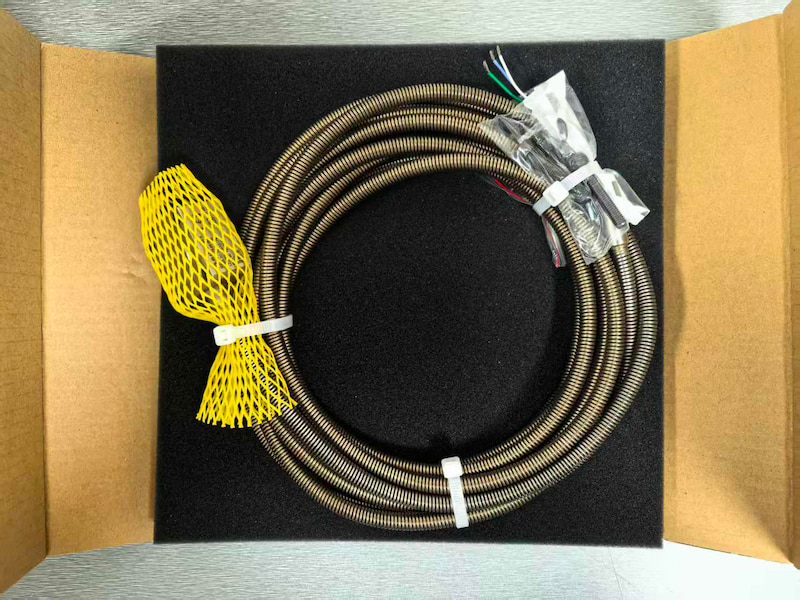

CA202 144-202-000-125 Piezoelectric Accelerometer

CA202 144-202-000-125 Piezoelectric Accelerometer

Functional Description

The CA202 sensor features a symmetrical shearmode polycrystalline measuring element with internal case

insulation in an austenitic stainlesssteel case (housing).

The CA202 is fitted with an integral low-noise cable that is protected by a flexible stainless-steel protection

hose (leaktight) which is hermetically welded to the sensor to produce a sealed leaktight assembly.

Features

• High sensitivity: 100 pC/g

• Frequency response: 0.5 to 6000 Hz

• Temperature range: −55 to 260°C

• Available in standard versions and Ex versions certified for use in potentially explosive atmospheres

• Symmetrical sensor with internal case insulation and differential output

• Hermetically welded austenitic stainless-steel case and heat-resistant stainless-steel protection hose

• Integral cable

Technical Specifications
