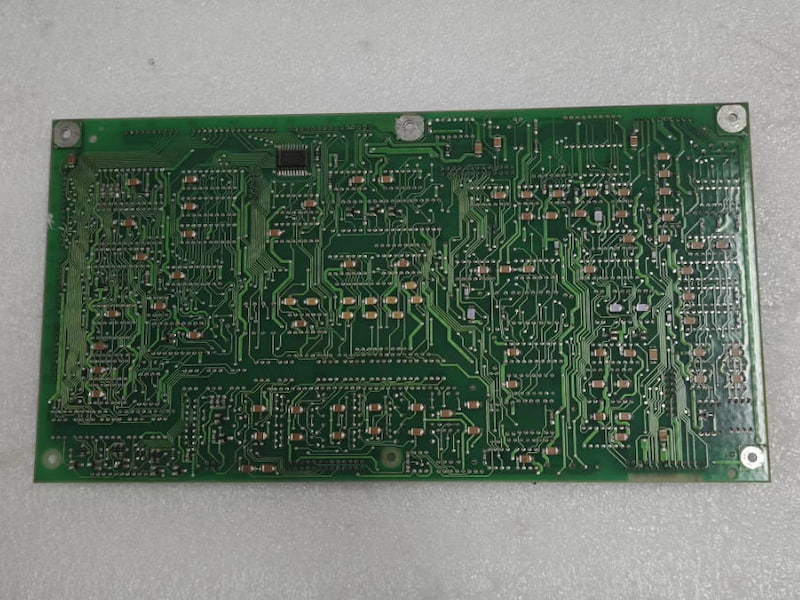

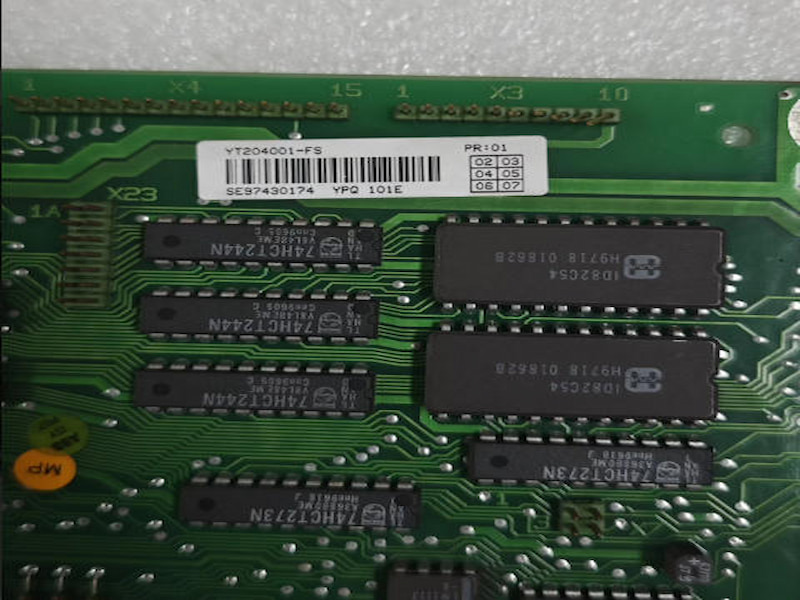

ABB YPQ101E YT204001-FS CIRCUIT BOARD CARD

ABB YPQ101E YT204001-FS CIRCUIT BOARD CARD

Description

ABB YPQ101E (Product Number YT204001-FS) is a programmable logic controller (PLC) board specifically designed for industrial automation scenarios. Its core purpose is to enable precise control of industrial processes and equipment, data acquisition, and reliable communication. Deeply compatible with various automation control systems, it serves as critical hardware for ensuring stable equipment operation in smart manufacturing, process control, and similar applications.

Multifunctional Control Capabilities: Equipped with 16 input and 16 output channels, supporting both single-ended and differential input types. Outputs feature relay form factors, enabling flexible adaptation to various sensor and actuator connection requirements. Operating voltage is 24V DC ±20%, with a maximum output frequency of 5kHz, meeting the demands of medium-to-high frequency control scenarios.

High-Efficiency Data Processing and Communication: Boasts high-speed processing capabilities with program execution as fast as 550μs, enabling rapid response to input signals and control logic execution. Supports multiple interfaces including Ethernet and serial communication, facilitating data sharing and interactive operations with other system components to meet networked control requirements.

Industrial-Grade Reliable Construction: Manufactured using original Swedish production processes, the unit weighs 2.5 kg with a robust, durable structure resistant to industrial vibrations and electromagnetic interference. Its outstanding safety design protects industrial processes and equipment from external disruptions while supporting remote diagnostics and maintenance to reduce operational costs.

Technical Specifications
