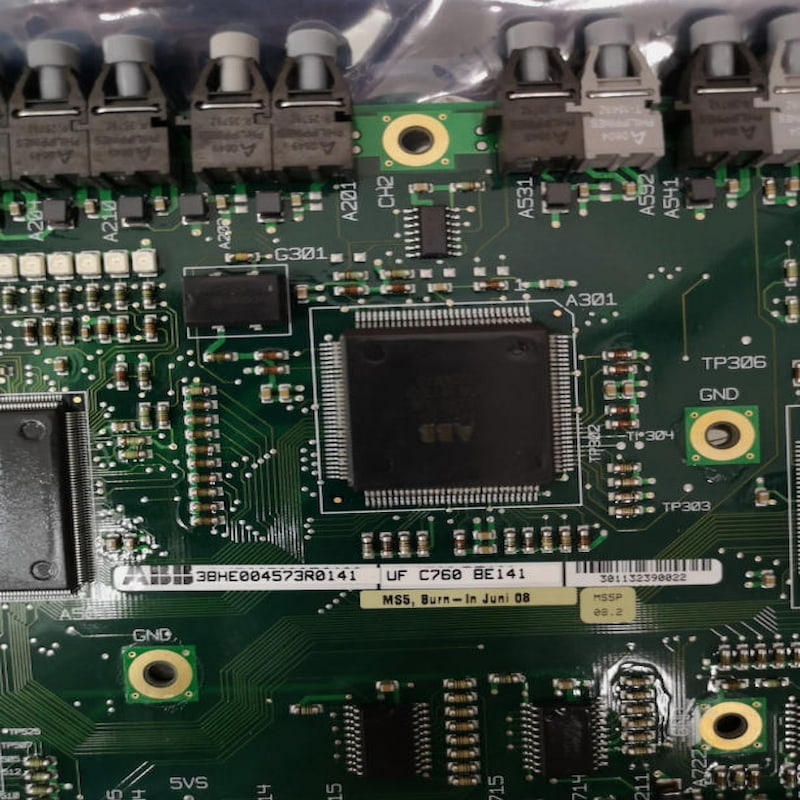

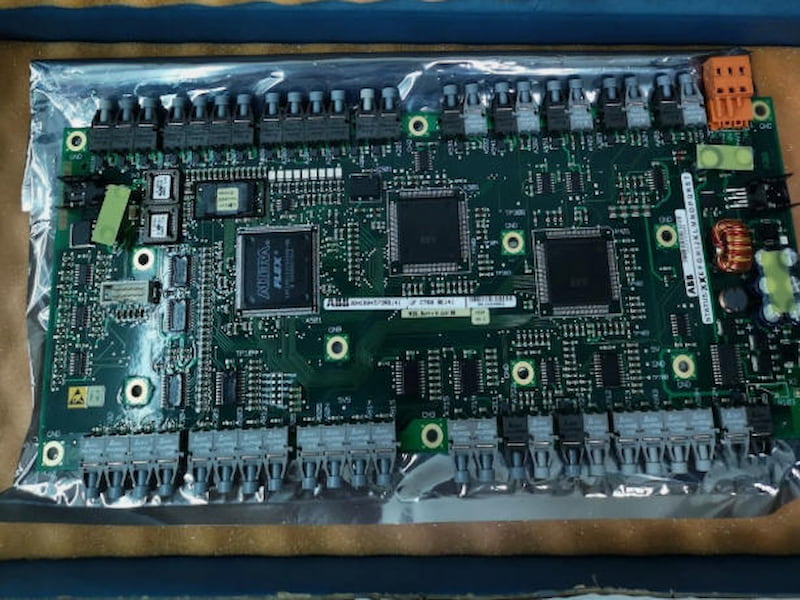

ABB UFC760BE141 3BHE004573R0141 Excitation Control Board

ABB UFC760BE141 3BHE004573R0141 Excitation Control Board

Description

ABB UFC760BE141 (3BHE004573R0141) is an excitation control board for the ABB Symphony Plus/Advant OCS system. It is specifically designed for synchronous generator excitation systems, mainly used for excitation current regulation, stator voltage stability, and reactive power control. It is widely applicable to power generation scenarios such as thermal power, hydropower, and nuclear power, ensuring the safe and stable operation of generators.

This control board adopts an industrial-grade rugged design, equipped with a 32-bit high-performance processor, featuring rapid response and high-precision control capabilities; it enhances anti-vibration and anti-electromagnetic interference performance, suitable for harsh conditions such as high temperatures and high humidity; it integrates multiple-channel signal acquisition and standardized communication interfaces, supports hot swapping and online diagnosis, facilitating quick integration and maintenance, and is the core component of the excitation control in power generation systems.

Features

Model: UFC760BE141 (3BHE004573R0141), Type: Excitation Control Board

Compatible Systems: ABB Symphony Plus, Advant OCS Control System, Synchronous Generator Excitation System

Core Functions: Excitation Current Regulation, Voltage Stability Control, Reactive Power Regulation, Fault Protection and Status Monitoring

Performance Configuration: 32-bit Industrial-grade Processor, High Precision Closed-loop Control, Fast Response

Communication Interfaces: Dual Ethernet, RS-485, System Bus, Supports Multi-protocol Data Interaction

Environmental Tolerance: Operating Temperature -20°C to +60°C, Resistant to Vibration, Strong Electromagnetic Interference, Suitable for Harsh Environments

Maintenance Design: Plug-and-Play Installation, LED Status Indication, Integrated Fault Diagnosis, Supports Online Replacement

Technical Specifications
