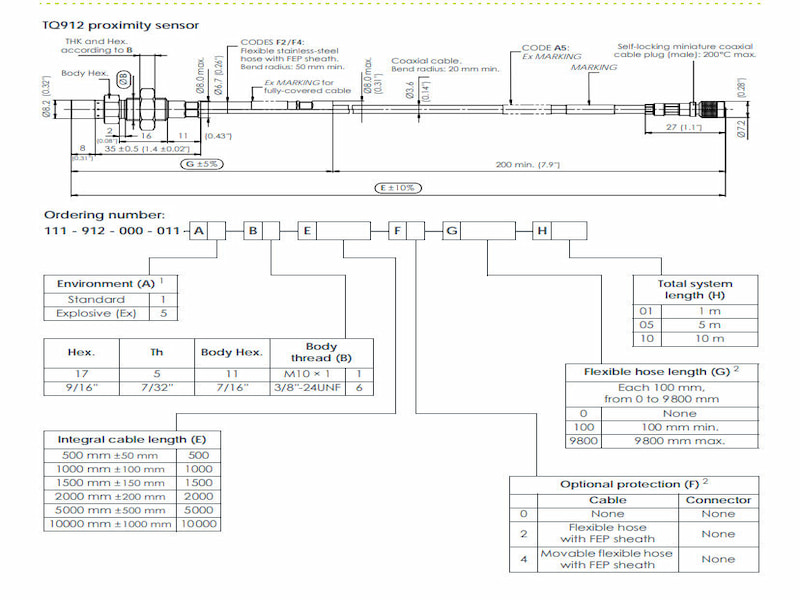

TQ912-011 111-912-000-011 A5-B1-E5000-F2-G4800-H05 Proximity Sensor

TQ912-011 111-912-000-011 A5-B1-E5000-F2-G4800-H05 Proximity Sensor

Description

Designed for the contactless measurement of relative vibration and axial displacement in turbines, compressors, pumps and fans 2 or 4 mm measurement range (Ø8.2 mm sensor)

−40 to 180 °C operating temperature, IP68 protection rating

0.5, 1.0, 1.5, 2.0 or 5.0 m integral coaxial cable.

Versions certified for use in potentially explosive atmospheres

Conforms to API 670 5th edition

8 mV/µm or 2.5 µA/µm (2 mm range), 4 mV/µm or 1.25 µA/µm (4 mm range), −40 to 180 °C, Ø8.2 mm tip, reverse-mount.

The TQ912 proximity sensor is a high-quality, high-reliability sensor for use with an EA902 extension cable and IQS900 signal conditioner, which provides either a voltage output or a current output.

The TQ912 is a reverse-mount sensor that is designed and built for long-term use in environments characterised by high temperatures and/or hazardous areas (potentially explosive atmospheres).

Features

Designed for the contactless measurement of relative vibration and axial displacement in turbines, compressors, pumps and fans

2 or 4 mm measurement range (Ø8.2 mm sensor)

−40 to 180 °C operating temperature, IP68 protection rating

0.5, 1.0, 1.5, 2.0 or 5.0 m integral coaxial cable

Versions certified for use in potentially explosive atmospheres

Conforms to API 670 5th edition
