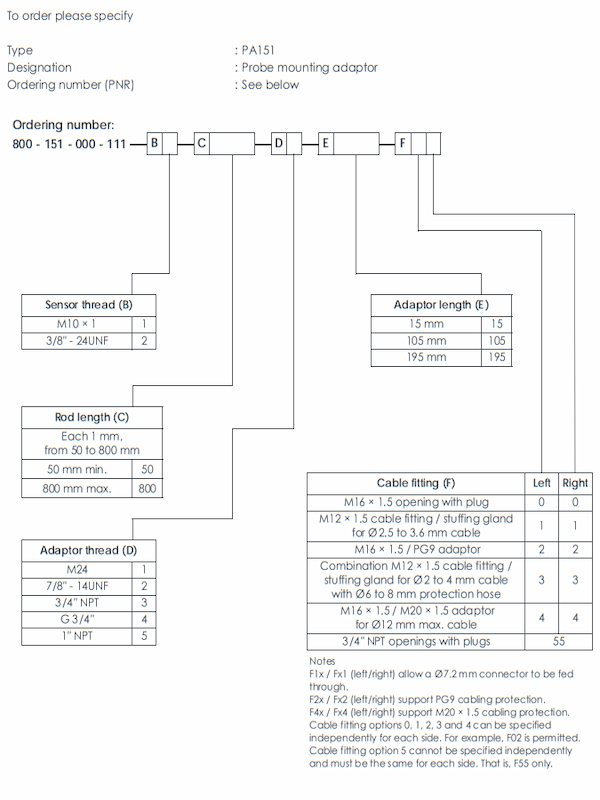

PA151 800-151-000-111 B1-C070-D3-E105-F3 Probe Mounting Adaptor

PA151 800-151-000-111-B1-C070-D3-E105-F3 Probe Mounting Adaptor

Functional Description

The PA151 probe mounting adaptor is designed for use with TQxxx proximity measurement chains/systems.

The PA151 probe mounting adaptor facilitates the external mounting of a reverse-mount proximity sensor

such as the TQ912, without the need for machine disassembly. The removable housing and U-shaped

retainer make it easier to adjust the gap or replace the sensor, even while the machine is running.

KEY FEATURES AND BENEFITS

• For the external mounting of TQxxx proximity sensors

• Ex certified for use in hazardous areas (potentially explosive atmospheres)

• Removable housing, with a U-shaped retainer, that allows easier probe (sensor) installation and gap

adjustment

• Sealed die-cast polyester housing

• Stainless steel rod available in lengths from 50 to 800 mm, with mounting position adjustable to ±10 mm

• Range of adaptor threads and lengths

• Choice of cable fittings (stuffing glands)

Technical Specifications
