Description

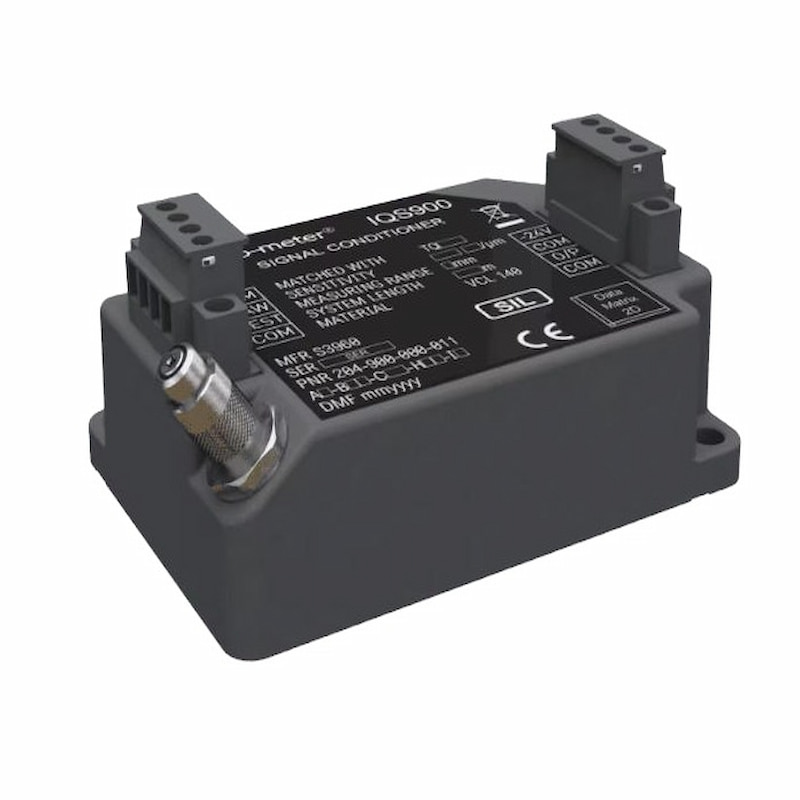

IQS900 204-900-000-011 is an electro-vortex signal conditioner under the brand Vibro-Meter (Meggitt), belonging to the IQS900 series. It is specifically designed to be used with the TQ series electro-vortex sensors. Based on high-frequency modulation and demodulation technology, it converts the displacement and vibration signals from the sensor into standard current or voltage outputs, which are used for high-precision condition monitoring of shaft vibration, axial displacement, clearance, etc. in rotating machinery.

The product adopts an industrial-grade reliable design, supporting SIL 2 safety level, explosion-proof certification, and loop diagnostic functions. It has wide frequency response, configurable sensitivity and range, and is compatible with TQ4xx/TQ9xx sensors. It can seamlessly integrate with systems such as VM600, meeting the equipment protection and advanced diagnostic requirements in the power, petrochemical, metallurgical, and other fields.

Features

• Signal conditioning for TQ proximity sensors.
• Shaft relative vibration and gap/position measurement for machinery protection and/or advanced condition monitoring.
• Very wide frequency range (DC to 20000 Hz), with configurable sensitivity and measurement range.
• Current output for signal transmission over long distances or voltage output for signal transmission over medium distances.
• Certified for use in potentially explosive atmospheres (hazardous areas).
• Suitable for use in functional safety contexts: SIL 2 in accordance with IEC 61508 and Cat 1 PL c in accordance with ISO 13849.
• Fully compliant with API 670 5th edition.
• “Raw” output and “Test” input signals for in-situ test support.
