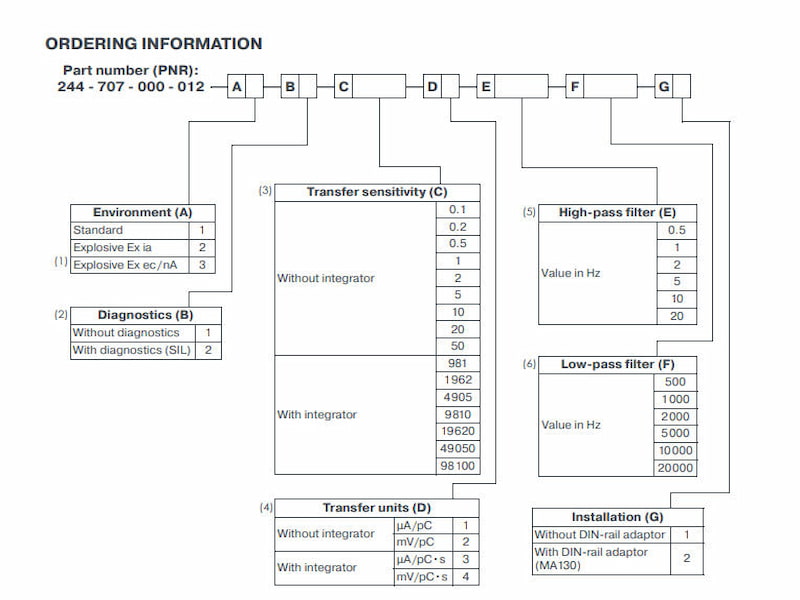

IPC707 244-707-000-012 A1-B1-C25-D1-E10-F10000-G2 signal conditioner

IPC707 244-707-000-012 A1-B1-C25-D1-E10-F10000-G2 signal conditioner

Description

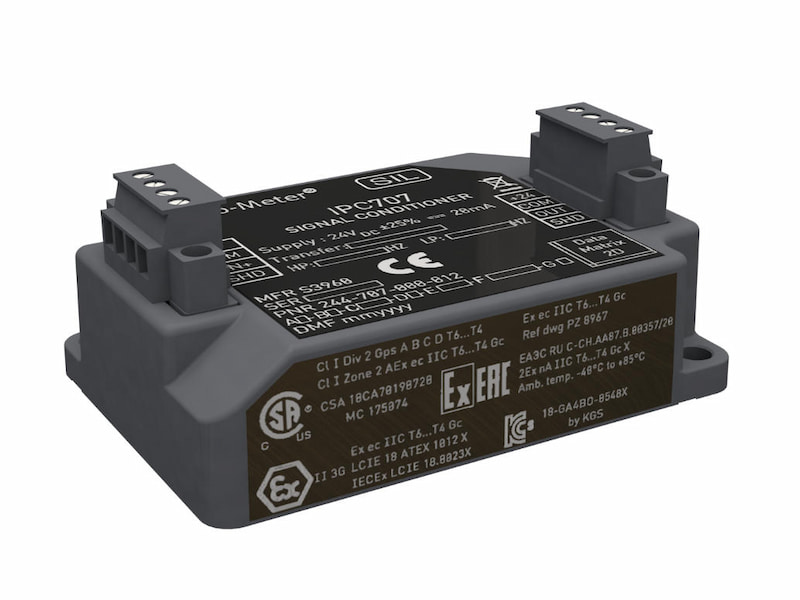

The IPC707 is a signal conditioner from Parker Meggitt’s vibro-meter® product line. It is designed for operation with sensors containing a piezoelectric sensing element that provide a charge output and require an external signal conditioner (charge amplifier).

The IPC707 signal conditioner is a versatile and highly configurable device that converts and processes the charge-based signal from a piezoelectric-based sensor into a current output or a voltage output signal, suitable for transmission to a monitoring system via a standard current (2-wire) or voltage (3-wire) transmission cable.

The IPC707 is designed for operation with vibration measurement chains using CAxxx piezoelectric accelerometers and pressure measurement chains using CPxxx dynamic pressure sensors. It can also be used with other piezoelectric-based sensors and cabling assemblies that meet the required input characteristics.

 APPLICATIONS

• Vibration measurement chains using CAxxx piezoelectric accelerometers

• Pressure measurement chains using CPxxx piezoelectric pressure sensors

• Safety-related applications
