IPC704 244-704-000-042 A1-B03-C100-D100-E5-F2000-G0-H0-I0 Signal Conditioner

IPC704 244-704-000-042 A1-B03-C100-D100-E5-F2000-G0-H0-I0 Signal Conditioner

Description

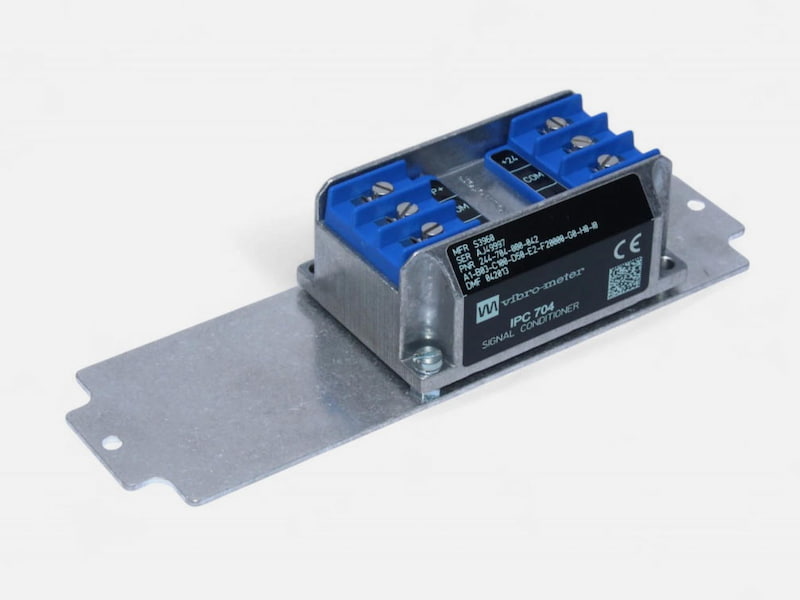

IPC704 (Model 244-704-000-042 A1-B03-C100-D100-E5-F2000-G0-H0-I0) is a piezoelectric sensor charge signal conditioner specifically designed for the rotating unit monitoring system. It is compatible with piezoelectric acceleration probes and dynamic pressure sensors, collecting the weak charge signals output by the sensors, performing amplification, filtering, integration conversion processing, and outputting standard current or voltage analog signals for the subsequent monitoring equipment to collect. It is mainly used for online vibration and dynamic pressure monitoring and unit protection scenarios of large power equipment such as steam turbines, compressors, and fans. Istec.

The equipment adopts an aluminum alloy integrated molding shell, with built-in customizable high-pass and low-pass filtering circuits, and optional integration function to output vibration velocity signals. It supports two-wire current long-distance transmission, with the longest transmission distance reaching 1000 meters. When paired with isolation units, it can eliminate ground loop interference. It has explosion-proof certification and is compatible with flammable and explosive working conditions. The wide temperature working range can withstand high and low temperatures, dust, and electromagnetic interference in the site. The factory can customize parameters according to cable length, sensitivity, and range. It can stably output high-precision measurement data, facilitating equipment fault diagnosis and safety interlock monitoring. Istec.

Features

Special charge conversion module for piezoelectric sensors, for measuring equipment vibration and dynamic pressure signals

Wide frequency response range of 0.5Hz to 20kHz, with customizable high-pass and low-pass filtering parameters at factory

Optional integration function, capable of directly outputting vibration velocity measurement signals

Supports dual output of current and voltage, with current type suitable for long-distance transmission over kilometers

Built-in radio frequency anti-interference circuit, reducing the impact of on-site electromagnetic noise

Explosion-proof certified version, suitable for deployment in hazardous explosion-proof areas of chemical and oil industries

Aluminum alloy sturdy housing, capable of operating in wide temperature range, compatible with industrial harsh control cabinet environments

Multiple installation methods, can be combined with isolation units to eliminate common-mode ground loop interference

Technical Specifications
