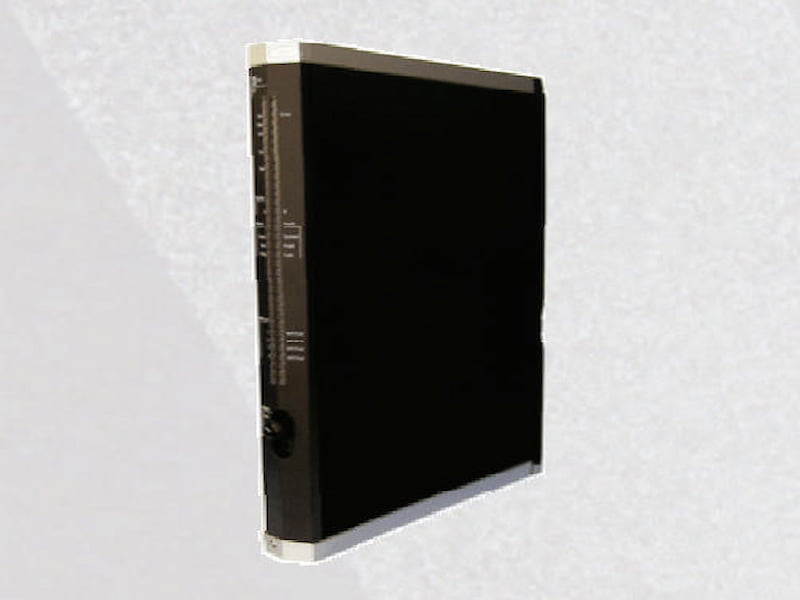

HIMA X-CPU01 985210211 Processor Module

HIMA X-CPU01 985210211 Processor Module

Description

X-CPU01 (part number 985210211) is the core main control processor module of the safety instrumented system rack. It adopts a 1oo2 dual-redundant hardware architecture and serves as the computing center of the entire safety system. It is responsible for running up to 32 user safety programs, collecting signals from various IO modules to complete safety logic operations such as interlock and stop, and relies on the safety Ethernet to achieve data interaction between modules and the upper-level monitoring system. At the same time, it stores all system events and fault records.

The module is equipped with a complete hardware self-diagnosis mechanism, meeting the SIL3 functional safety standard. In case of hardware failure, it automatically enters a safe shutdown state. It supports multi-CPU redundancy and parallel deployment, has the ability of rack hot swapping, and does not interrupt the safety control process during replacement. It is widely used in ESD and FGS critical safety interlock systems of chemical, oil and gas, and thermal power devices.

Features

1oo2 dual-processor redundant architecture, SIL3 certification, compliant with IEC61508 functional safety standard

Maximum support for 32 independent user programs, built-in large-capacity program and power-off save memory

Secure Ethernet communication, interfacing with configuration software, upper-level systems and remote IO devices

Full-cycle hardware self-check, automatically switching to safe state in case of faults and retaining fault logs

Support for multi-CPU redundant collaboration, scalable to large-scale safety control systems with multiple racks

Front panel status indicator lights, intuitively displaying operation, faults, and communication conditions

24VDC standard industrial power supply, suitable for wide temperature operation and compatible with on-site control cabinet environment

Standard rack plug-and-play design, allowing online replacement without interrupting safety functions

Technical Specifications
