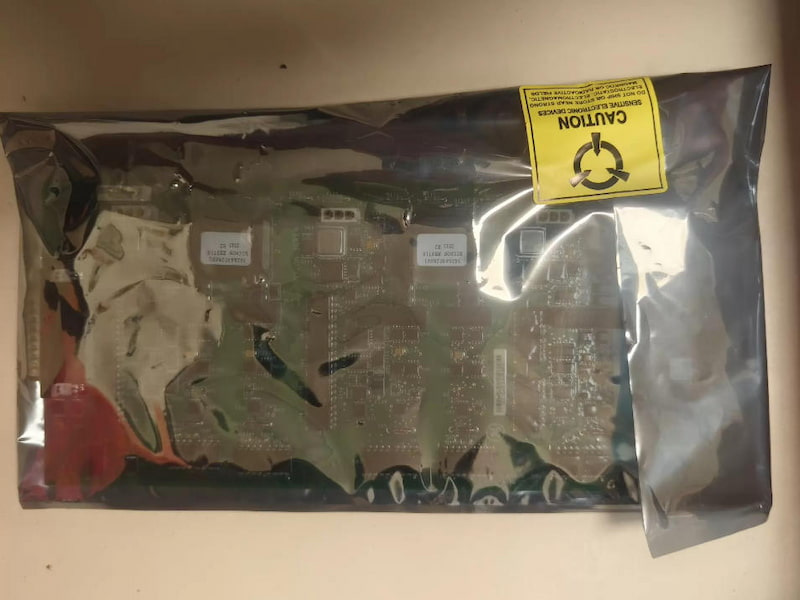

GE IS210TREAH1A Turbine Emergency Terminal Board

GE IS210TREAH1A Turbine Emergency Terminal Board

Description

IS210TREAH1A is a dedicated emergency trip terminal board for the GE Mark VIe turbine control system for aircraft modification models. It is a core wiring module of the unit's safety protection system, responsible for the transfer and interaction between on-site safety circuits and the main control unit.

This board integrates multiple dry contact inputs and trip drive circuits. It can receive interlock signals such as overspeed, abnormal oil pressure, excessive vibration, and local emergency stop, and drive the trip solenoid valve to complete the emergency shutdown of the unit. It has a fault-safe design and is widely applicable to the safety protection scenarios of aircraft modification type gas turbine generator sets.

Features

Compatible with GE Mark VIe control system, specially designed for the trip circuit of marine gas turbines

Multi-channel interlock dry contact input, equipped with multiple 125VDC trip solenoid valve drive circuits

Fault-safe architecture, automatically triggers shutdown protection in case of power failure, ensuring equipment safety

Integrated with large-sized terminal blocks, facilitating wiring and convenient for on-site maintenance and repair

Industrial wide-temperature operation, resistant to electromagnetic interference, meeting the long-term continuous operation requirements of power plants

Technical Specifications
