Functional Description

The IS200EBKPG1C Exciter Back Plane (EBKP) is used in the EX2100 Excitation Control. It is part of the control

module and provides the backplane for the control boards, and the connectors for the I/O terminal board

cables. EBKP has three sections for the controllers M1, M2, and C. Each section has its own independent

power supply. Sections M1 and M2 both have the ACLA or ACLE, DSPX, EISB, EMIO, and ESEL boards. Section

C has the DSPX, EISB, and EMIO. The EBKP board is mounted in a rack holding the control boards, with two

cooling fans at the top.

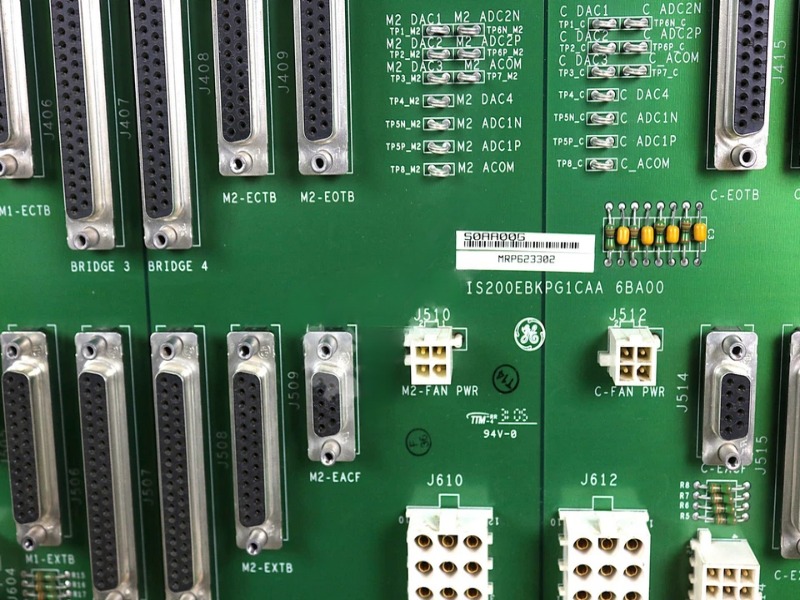

The upper part of the backplane contains 24 DIN connectors as part of the backplane. The lower part of the

backplane contains 27 D-SUB connectors, three circular DIN connectors, three 12-pin power supply plugs,

three fan power plugs, and 30 Testpoints.
