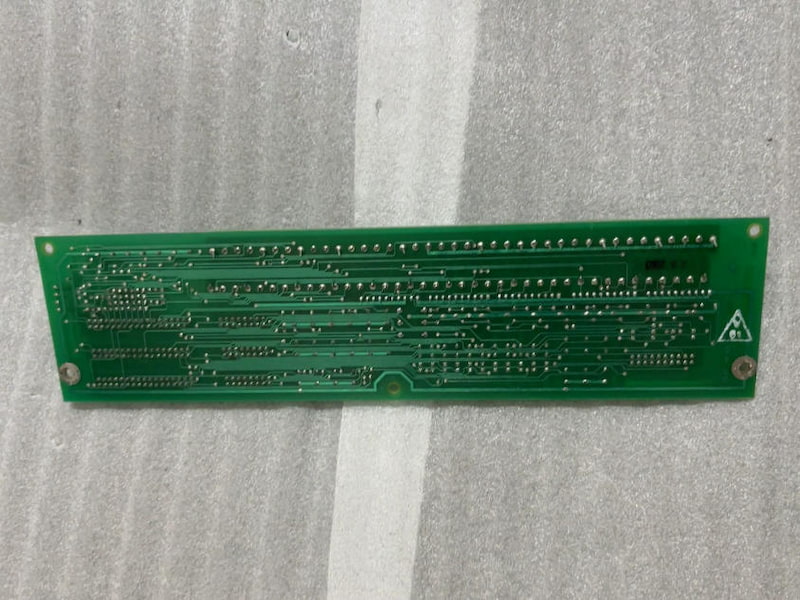

GE DS200TBQBG1ACB Input Termination Module

GE DS200TBQBG1ACB Input Termination Module

Description

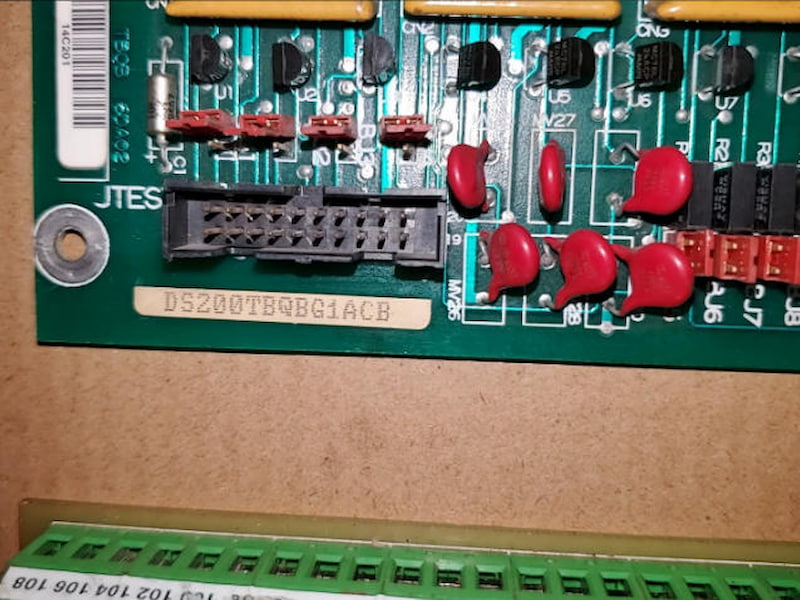

DS200TBQBG1ACB is an RST analog-digital terminal board provided by GE Mark V turbine control system. It is installed in the R2 and R3 core slots of the system and serves as the core signal transfer hub between the on-site sensors and the main control board.

This terminal board can uniformly collect multiple types of condition signals such as voltage, vibration, and pulse. It connects to the TCQA and TCQC main control boards to achieve cross-core signal interaction, enabling stable collection and transmission of turbine operating parameters. It is suitable for control loops of heavy-duty rotating units in power plants, oil and gas industries, etc.

Features

Compatible with GE Mark V turbine control system, with multiple sets of standardized terminal blocks built-in

Compatible with various types of on-site input signals such as voltage, vibration, and pulse

Supports R2/R3 dual-core installation and can work in coordination with TCQA, TCQC boards

Industrial wide-temperature design, resistant to electromagnetic interference, suitable for harsh on-site conditions

Standardized interface layout, easy to disassemble and assemble, convenient for equipment maintenance and replacement

Technical Specifications
