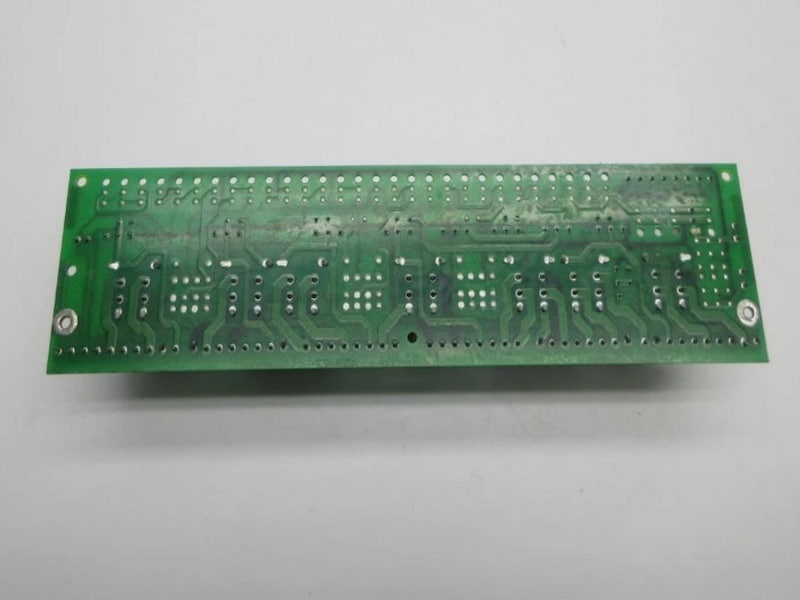

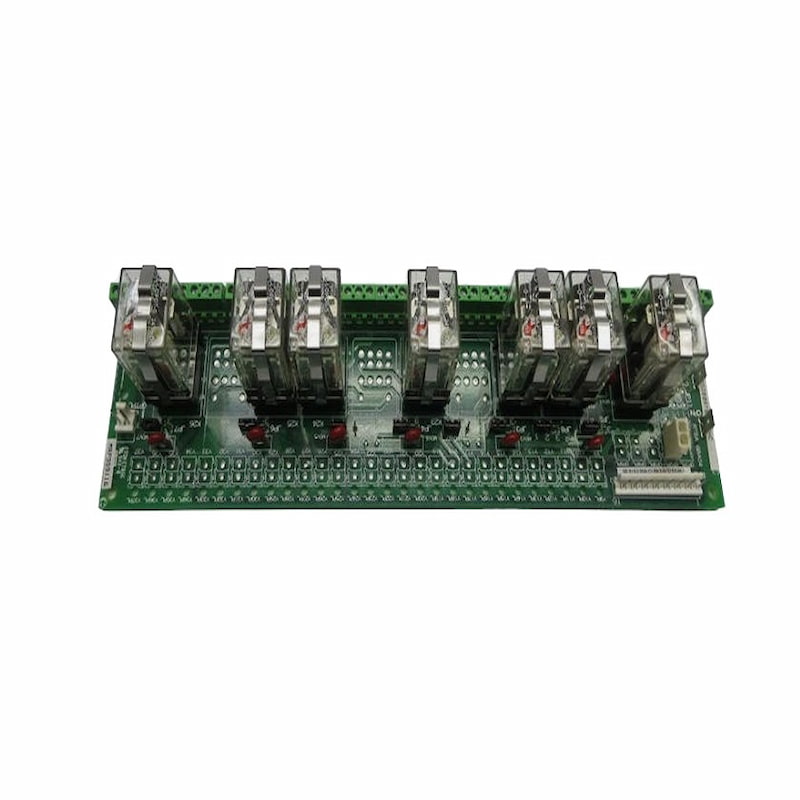

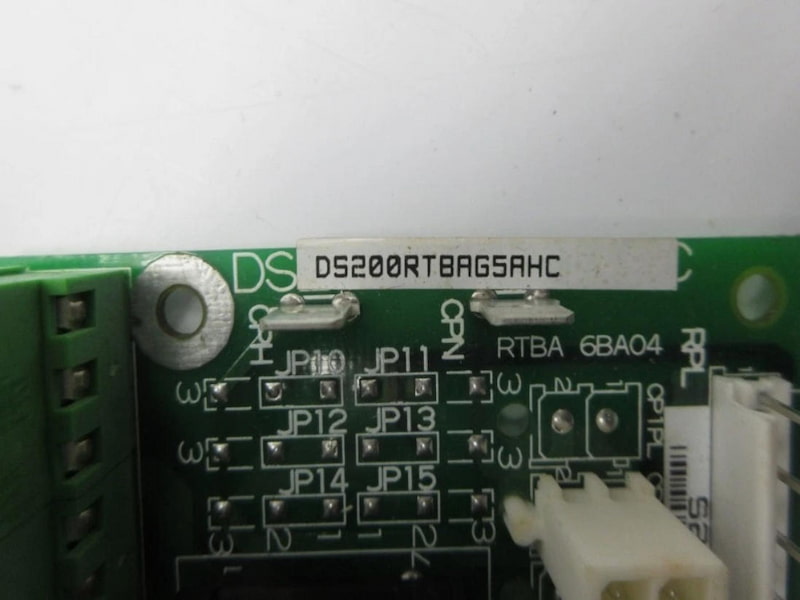

GE DS200RTBAG5AHC Relay Terminal Board

GE DS200RTBAG5AHC Relay Terminal Board

Description

The GE DS200RTBAG5AHC is a relay terminal board specifically designed for the GE Speedtronic Mark V turbine control system. It is a core component for the system drive cabinet and is equipped with multiple relays to achieve signal driving and distribution. It supports both local and remote dual control modes and serves as a crucial bridge connecting the system control logic with external actuating components. It is suitable for industrial control scenarios such as the power generation industry.

This board adopts a dedicated structure for deployment in the drive cabinet and is equipped with dedicated connectors and screw-fixed wiring. Each relay has an independent LED status indicator and can be replaced individually, making fault location and maintenance more convenient. It features an industrial-grade anti-interference design, capable of adapting to complex industrial site conditions, providing stable hardware support for the relay control and signal transmission of the Mark V system.

Features

• Compatible with GE Speedtronic Mark V turbine control system, dedicated relay terminal board
• Core functions: Relay drive, signal distribution, supports local / remote dual control
• Multi-channel relay configuration, independent LED indicator lights, easy fault identification
• Screw-fixed wiring + dedicated connectors, secure connection, convenient disassembly and assembly
• Relays can be replaced individually, reducing operation and maintenance costs and improving maintenance efficiency
• Compatible with drive cabinet installation, industrial-grade anti-interference, suitable for harsh industrial conditions
• Connects control logic with external components to ensure stable signal transmission

Technical Specifications
