The DS200FCSAG2A is a Current Sensing Feedback Board used in the Load Commutator Inverter Control System.
وسم :
GEرقم الجزء :
DS200FCSAG2Aوصف :
Current Sensing Feedback Boardأصل :
USAشرط :
Newالبعد :
240 mm x 160 mm x 30 mmثقل :
0.3 kgدفع :
Bank Transfer

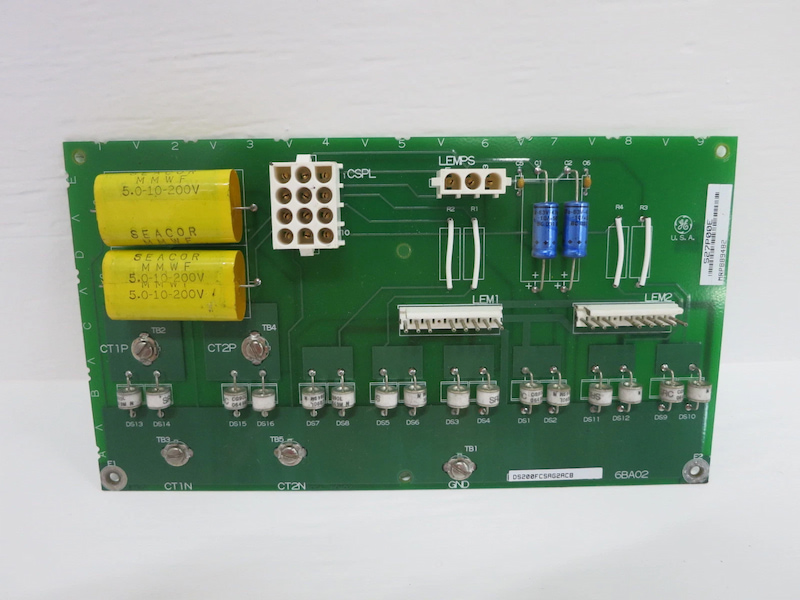

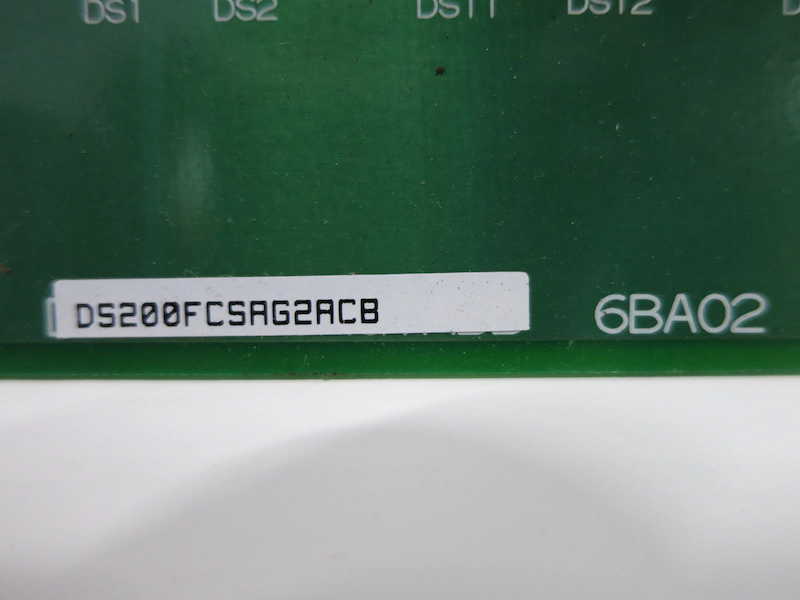

GE DS200FCSAG2A Current Sensing Feedback Board
Functional Description
The DS200FCSAG2A Current Sensing Feedback Board (FCSA) is used in conjunction with the control power
supply (CPS). This board accepts the CPS voltage supplies of 5, 12, 15, and 24 volts. This model is installed in
the Power Conversion Cabinet for Static Starters. This model is used in conjunction with a Control Power
Supply when in operation (CPS).
The CPS will produce several voltage levels during the operation of both the CPS and the FCSA, which are
five, twelve, fifteen, and twenty-four volts. These voltages are produced specifically for the FCSA board and
VME card rack. A current-sensing feedback board is a circuit board designed to measure and provide
feedback on the electric current flowing through a circuit. It typically consists of current sensing components,
such as shunt resistors or current transformers, along with signal conditioning circuitry and an output
interface.
Technical Specifications
| Manufacturer | GE |
| Part Number | DS200FCSAG2A |
| Ordering Information | DS200FCSAG2A |
| Product Catalog | Load Commutator Inverter Control System |
| Description | Current Sensing Feedback Board |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 240 mm x 160 mm x 30 mm |
| Weight | 0.3 kg |
