The DS200FCGDH1B is a Gate Distribution and Status Board used in the Mark V Control system.
وسم :
GEرقم الجزء :
DS200FCGDH1Bوصف :
Gate Distribution and Status Boardأصل :
USAشرط :
Newالبعد :
240 mm x 160 mm x 30 mmثقل :
0.5 kgدفع :
Bank Transfer

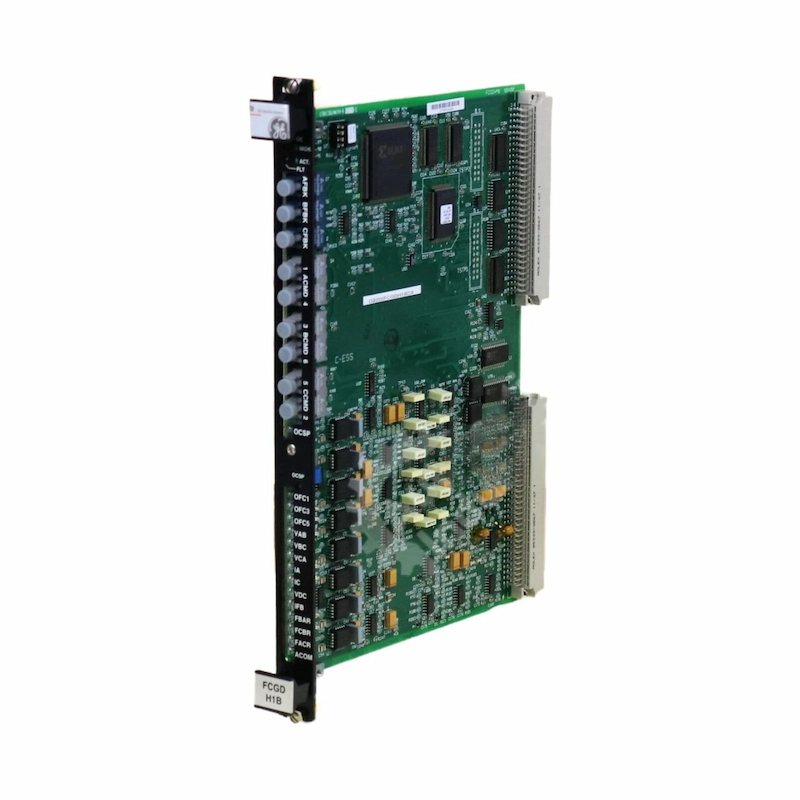

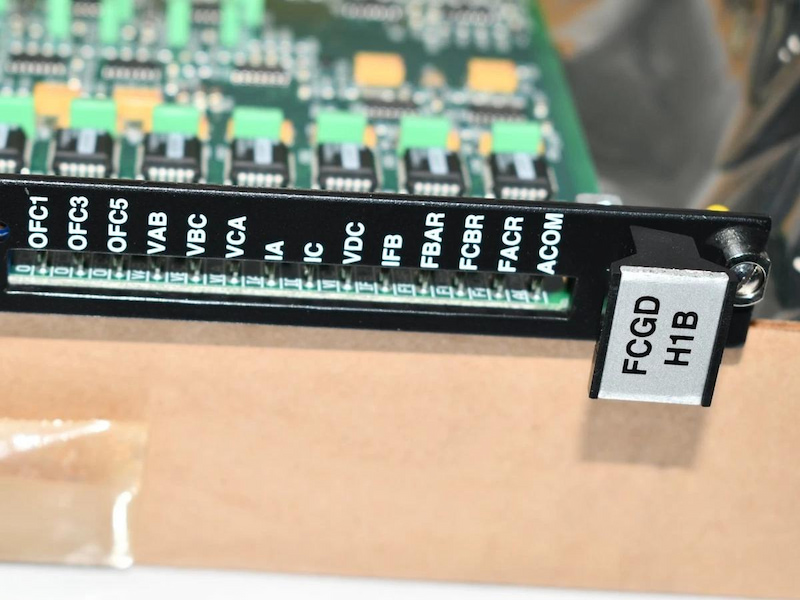

GE DS200FCGDH1B Gate Distribution and Status Board
Functional Description
The Gate Distribution and Status Card (FCGD) is an interface board for a 6-pulse phase-controlled non-
reversing bridge. It receives SCR firing information from the DS200DSPC (DSPC – the VME processor)
board and returns feedback and diagnostic information via the VME backplane. The FCGD decodes and
distributes cell gating signals for each bridge leg and receives a multiplexed cell status signals from each
bridge leg. It also receives and scales bridge feedback signals then sends this voltage, frequency, and current
status information back to the DSPC board.

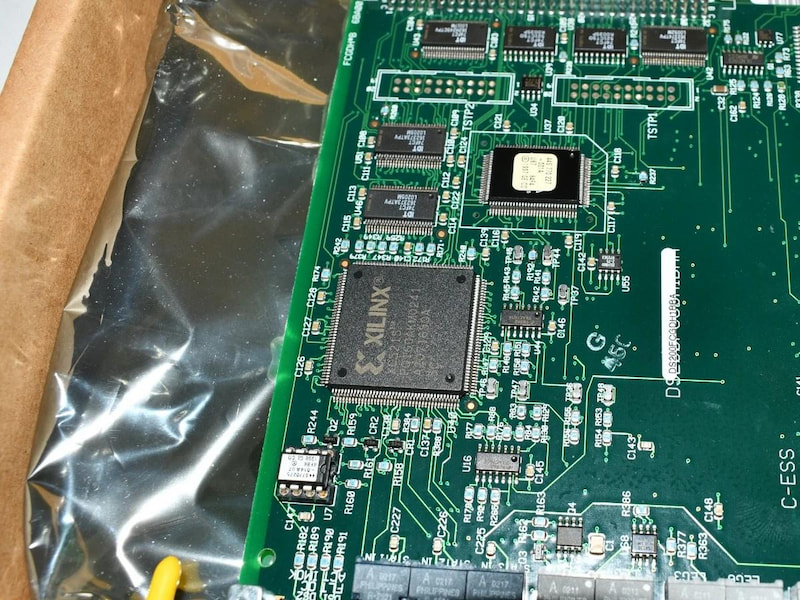

The FCGD board is 6U VME size (9.2x6.3 inches), with six layers and surface-mounted devices (SMDs) on
both sides. The FCGD mounts in the same VME rack that houses the Digital Signal Processing Card (DSPC).
Technical Specifications
Manufacturer | GE |
Part Number | DS200FCGDH1B |
Ordering Information | DS200FCGDH1B |
Product Catalog | Mark V Control System |
Description | Gate Distribution and Status Board |
Voltage | 24 Vdc |
Current | 1A |
Dimensions | 240 mm x 160 mm x 30 mm |
Weight | 0.5 kg |
