The 330780-90-00 is a 3300 XL 11mm proximitor sensor for 3500 machinery protection system, measuring vibration and displacement
وسم :
Bently Nevadaرقم الجزء :
330780-90-00وصف :
3300 XL 11 mm Proximitor Sensorأصل :
USAشرط :
Newالبعد :
241.3 mm x 24.4 mm x 241.8 mmثقل :
0.8 kgدفع :
Bank Transfer

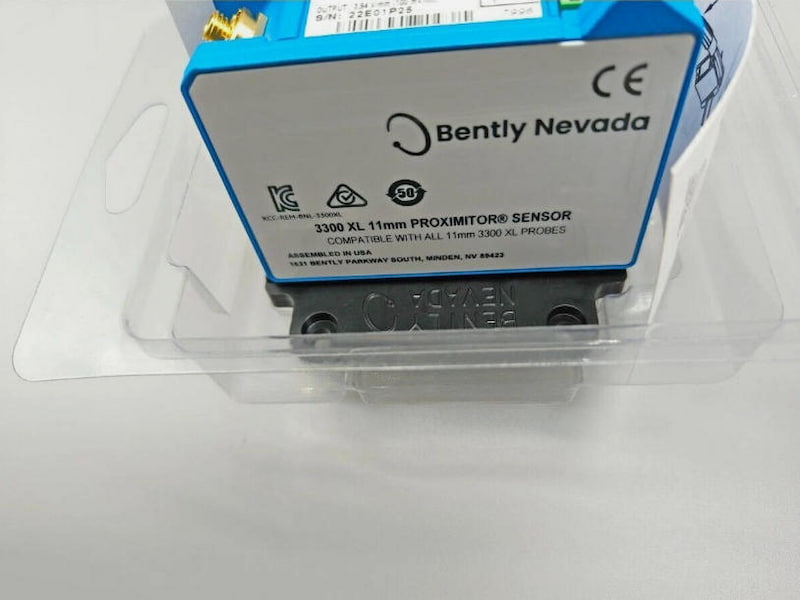

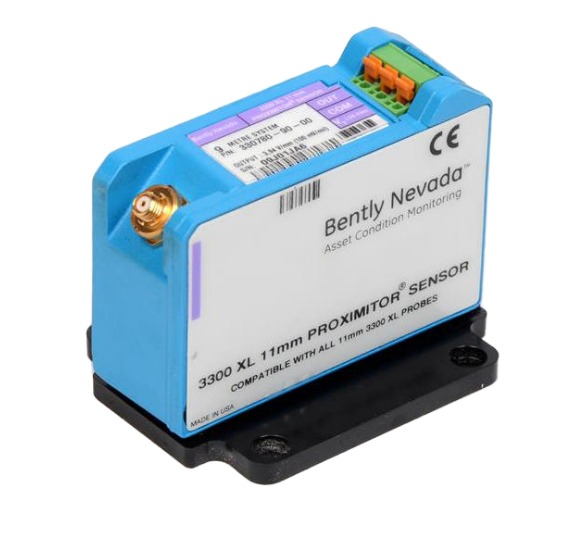

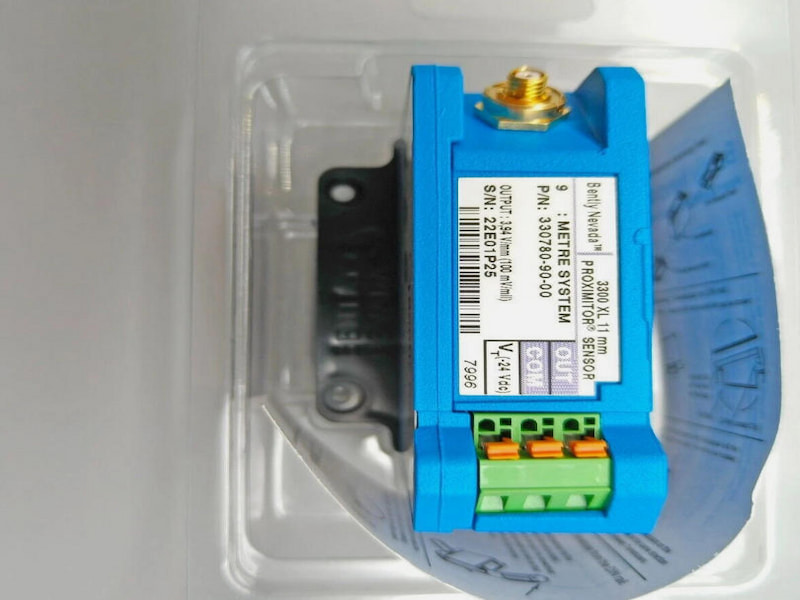

Bently Nevada 330780-90-00 3300 XL 11 mm Proximitor Sensor
Description
The 3300 XL 11 mm Proximitor Sensor has the same advanced features found in the 3300 XL 8 mm Proximitor Sensor. Its thin design allows it to be mounted in either a high-density DIN-rail installation or a more traditional panel mount configuration. Improved RFI/EMI immunity allows the 3300 XL Proximitor Sensor to achieve European CE mark approvals without any special mounting considerations. This RFI immunity also prevents the transducer system from being adversely affected by nearby high frequency radio signals. SpringLoc terminal strips on the Proximitor Sensor require no special installation tools and facilitate faster, highly robust field wiring connections.
Features
It is equipped with the 3300 XL 11mm sensor system, which is compatible with the 3500 monitoring system.
The measurement frequency ranges from 0 to 8kHz, covering vibration, displacement and phase monitoring.
The system length is 9 meters, and it supports panel installation.
It has a high anti-interference design, suitable for harsh industrial environments.
The signal is stable, ensuring long-term reliable operation.
Technical Specifications
| Manufacturer | Bently Nevada |
| Part Number | 330780-90-00 |
| Ordering Information | 330780-90-00 |
| Product Catalog | 3300 XL |
| Description | Proximitor Sensor |
| Voltage | 24 Vdc |
| Current | 100 mA |
| Dimensions | 241.3 mm x 24.4 mm x 241.8 mm |
| Weight | 0.82 kg |
