ABE042 204-042-100-012 System Rack

ABE042 204-042-100-012 System Rack

Functional Description

The ABE042 system racks is used to house hardware for the machinery protection systems and condition

monitoring systems.

The system rack have a standard height of 6U and provide mounting space (slots) for up to 15 single-width

VM cards, or a combination of single-width and multiple-width cards. The racks are particularly suitable for

industrial environments, where equipment must be permanently installed in 19″ cabinets or panels.

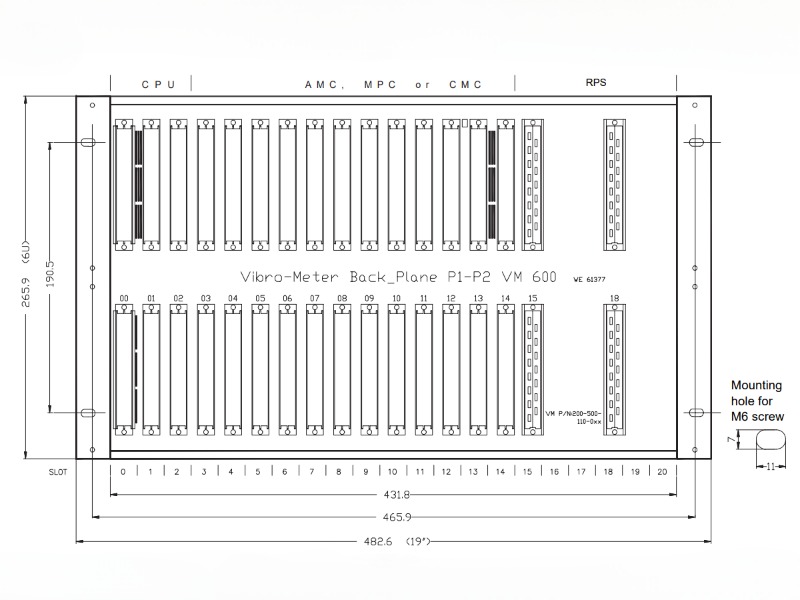

The rack has an integrated VME backplane which provides the electrical interconnections between the

installed VM cards: power supply, signal processing, data acquisition, input /output, CPU and relay. It also

includes a power supply check relay, available at the rear of the rack, which indicates that the installed power

supplies are operating normally.

Features

» 19″ system rack with a standard height of 6U

» Robust aluminium construction

» Modular concept allows specific cards to be added for machinery protection and/or condition monitoring

» Cabinet or panel mounting

» Backplane supporting the VME bus, the VM system's raw signal, tacho and open collector(OC) buses, and

power supply distribution

» Power supply check relay

Technical Specifications
