Function Description

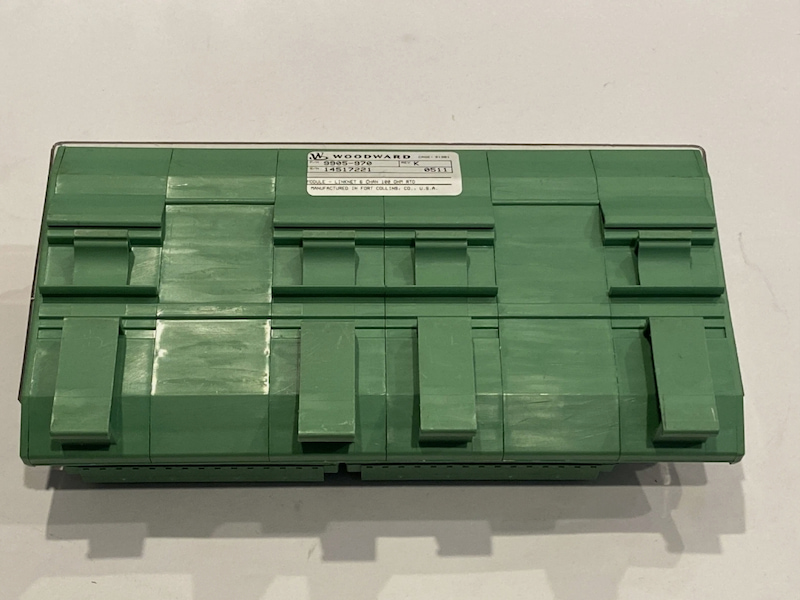

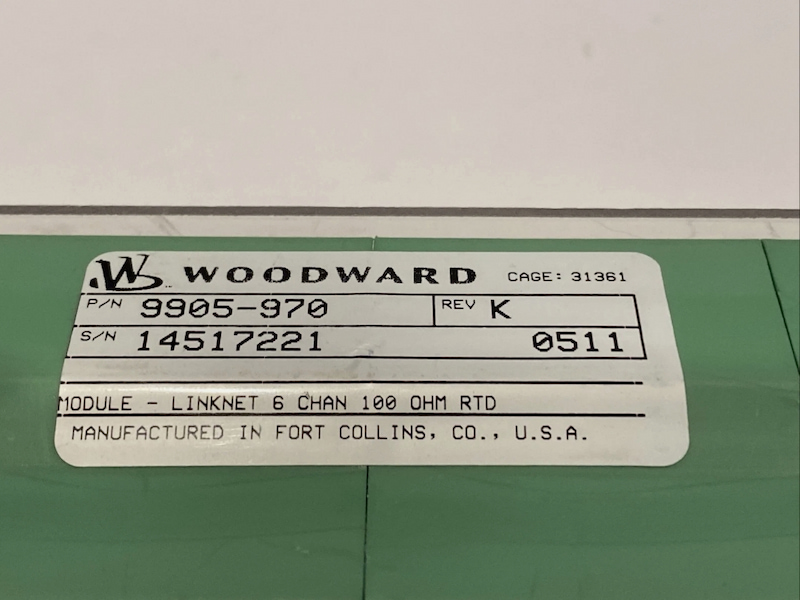

9905-970 is a LinkNet 6-Channel Input Module manufactured and designed by Woodward as part of the 9900 Series used in Turbine Control Systems. The Linknet 6 Channel Input Module's primary function is to provide the control system with up to six analog input signals, which can be used to monitor various parameters in the turbine system. These input signals could come from sensors that measure things like temperature, pressure, or flow rate, for example. By monitoring these parameters, the control system can make adjustments to the operation of the turbine to optimize its performance and ensure safe and efficient operation.

Features

• Multiple input channels: Provides up to six input channels, which allows for the monitoring of multiple parameters simultaneously.
• Analog input signals: The module accepts analog input signals, which are commonly used in turbine control systems to monitor parameters like temperature, pressure, and flow rate.
• High accuracy: Designed to provide highly accurate measurements of input signals, which is essential for maintaining safe and efficient turbine operation.
• Wide input range: Supports a wide range of input signals, including signals with voltages ranging from 0-10V and currents ranging from 0-20mA.
• Scalability: Can be used in conjunction with other Linknet components to create a scalable control system that can be customized to meet the needs of different turbine applications.
• Easy installation: Easy to install and configure, thanks to its plug-and-play design and user-friendly interface.

Technical Specifications
