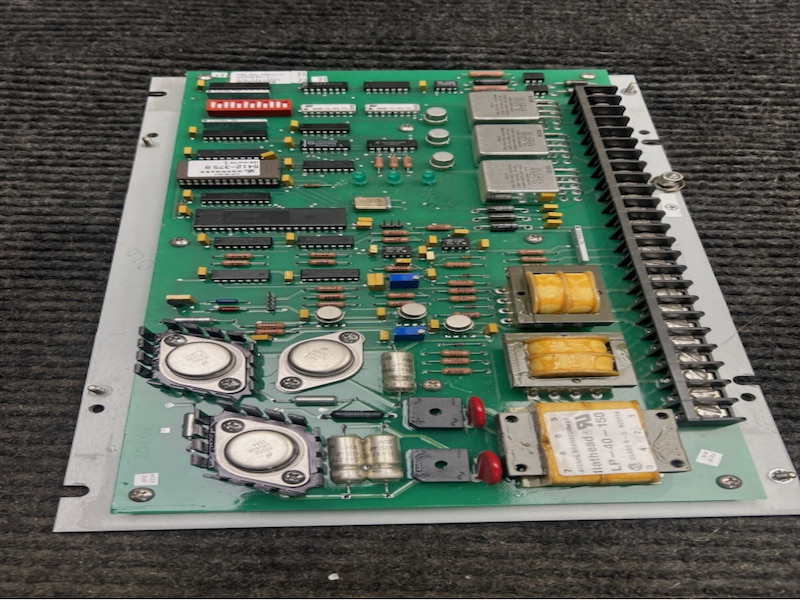

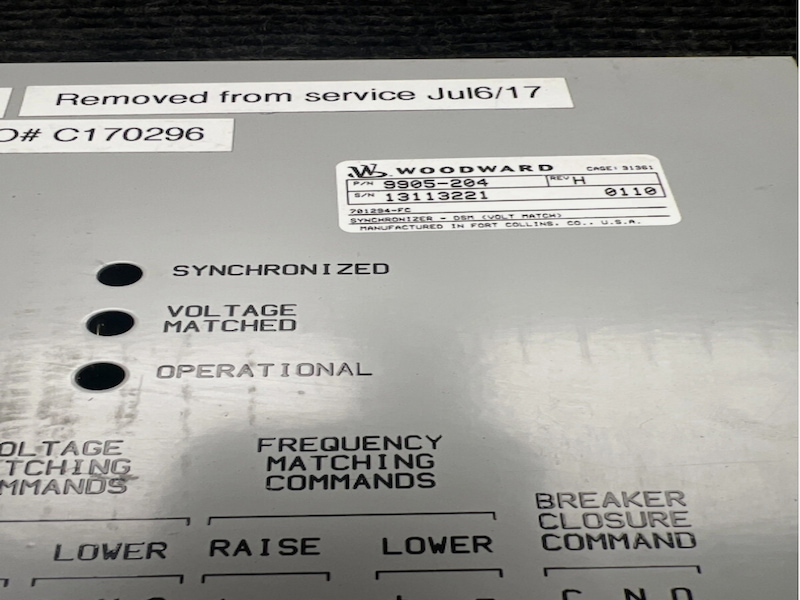

Woodward 9905-204 DSM Synchronizer Module

Woodward 9905-204 DSM Synchronizer Module

Function Description

The DSM Synchronizer automatically synchronizes the speed of an oncoming generator to a bus by sending raise or lower signals to the speed reference of the speed control. Models with voltage matching also include circuitry which matches the generator and the bus voltages by sending raise or lower signals to the generator voltage regulator.

Application

The DSM Synchronizer is recommended for use in power generation systems using steam or gas turbines. It is designed for use with electronic controls requiring raise and lower contact signals, including digital controls such as the Woodward 501, 503, 509, 505, and the NetCon® system.

Features

• Switch-Selectable Operating Dynamics
• Two Breaker Commands
• Four Operating Modes
• Built-In Safety

Technical Specifications
