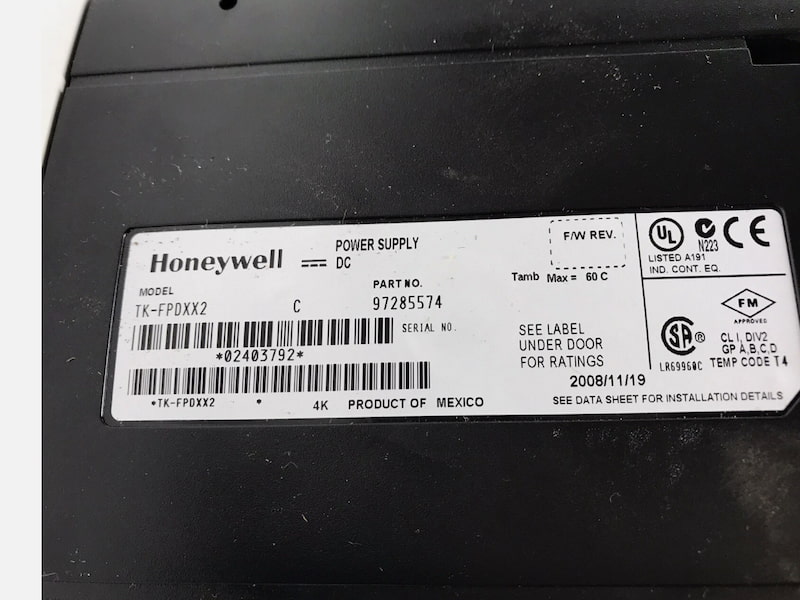

Honeywell TK-FPDXX2 Power Supply Module

Honeywell TK-FPDXX2 Power Supply Module

Description

Input Voltage Range：19.2-32 VDC1

Input Power²：100 W

Maximum Inrush Current：30 A

Frequency Range：DC

Total power output maximum, watts：70 W @ 60 °C

Backplane Output Current, Maximum：1.5 A @ 1.2 V ；4 A @ 3.3 V ；10 A @ 5.1 V ；2.8 A @ 24.0 V

Fuse Protection：non-replaceable fuse is soldered in place

Wiring：#14 AWG (1.4 mm)

Location： Left side of chassis (does not consume a slot)

• Input may drop to 16 V for a maximum of 2 minutes each hour for motor starting.
• Note earlier models were rated as follows: TC-FPCXX1 - 55 W @ 60'C; 70 W @ 45'C and TC-FPDXX1 .. 50W @ 60°C; 70 W @ 40°C.
• The combination of all output power (5 V backplane, 24 V backplane, 3.3 V backplane and 1.2 V backplane)cannot exceed 70 W.
• This fuse is intended to quard against fire hazard due to short circuit conditions and may not protect the power4supply from damage under overload conditions.

Technical Specifications
