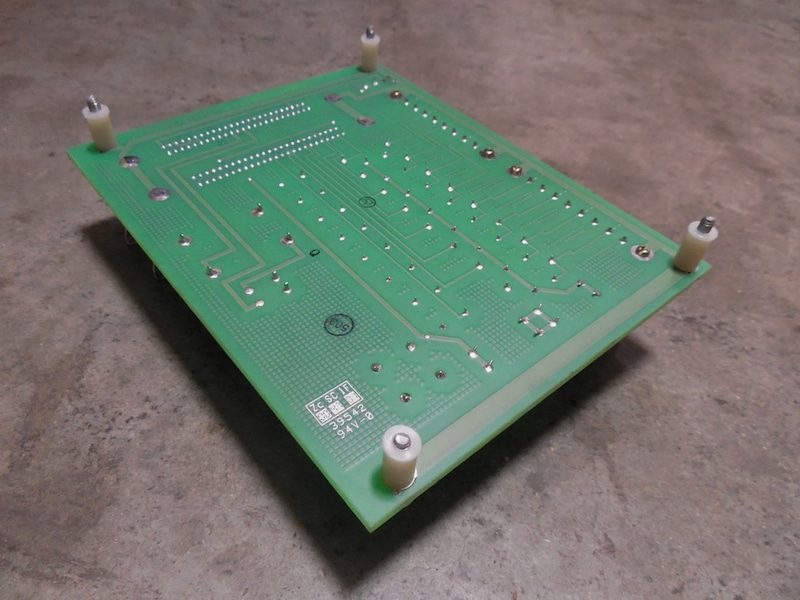

Honeywell MU-TAOX02 Analog Output FTA (8 Outputs)

Honeywell MU-TAOX02 Analog Output FTA (8 Outputs)

Functional Description

Two versions of the Analog Output IOP are available: one with 8 outputs and one with 16 outputs.

Both processors provide the following functions：

• Readback check of actual output current
• Output characterization (5 segment)
• Output default action on failure (hold or unpowered)
• Modes and associated functions to support Manual loader and DDC control
• Software calibration

The 8-pt. analog output processor provides separate D/A converters and power regulator per channel for maximum output security. As an option, one-on-one Analog Output processor redundancy (available for both versions) provides even higher control strategy integrity.

The 16-pt analog output processor may be used with HART® field devices if the Model MU-THAO11 or MUGHAO11 FTA is selected. These FTAs provide a connector for an external HART subsystem, and incorporate filters to prevent interference between the HART® signals and the TPS system.

Technical Specifications
