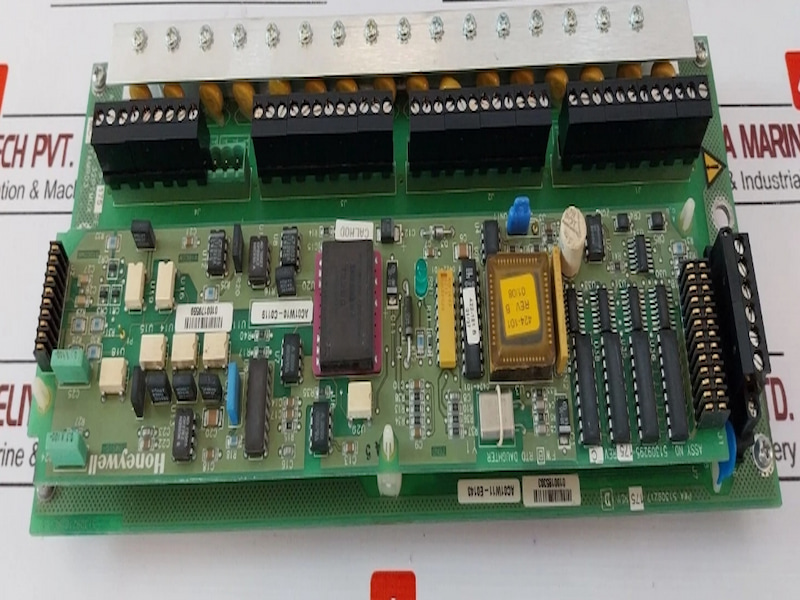

Honeywell MC-TAMR04(51305907-175) Low Level Analog Input Multiplexer

Honeywell MC-TAMR04(51305907-175) Low Level Analog Input Multiplexer

Description

• Input Channels: 16 analog inputs with solid-state relays
• Input Voltage Ranges: ±10 V, ±20 V, ±50 mV, ±100 mV, ±200 mV, ±500 mV, ±1 V
• Input Current Ranges: 10 µA, 100 µA, 1 mA, 10 mA
• High Isolation: Channel-to-channel and channel-to-power supply common isolation in 16-channel increments
• Programmable Gain and Offset: Allows for precise calibration and signal conditioning
• Operating Temperature Range: -40°C to +70°C
• Mounting: DIN rail or panel mount
• Compatibility: Honeywell's TDC 3000 control systems

Technical Specifications
