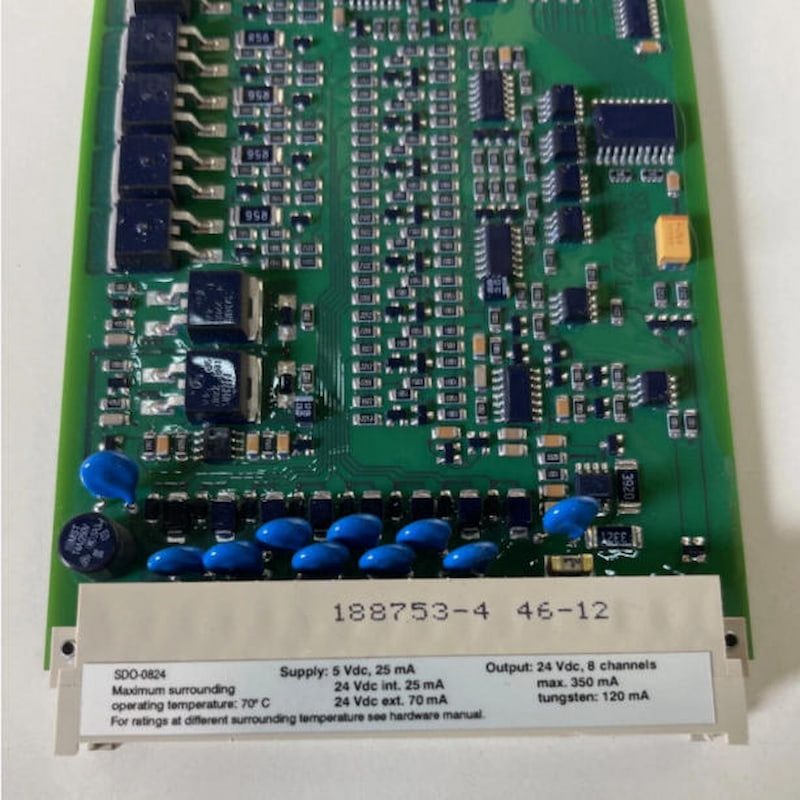

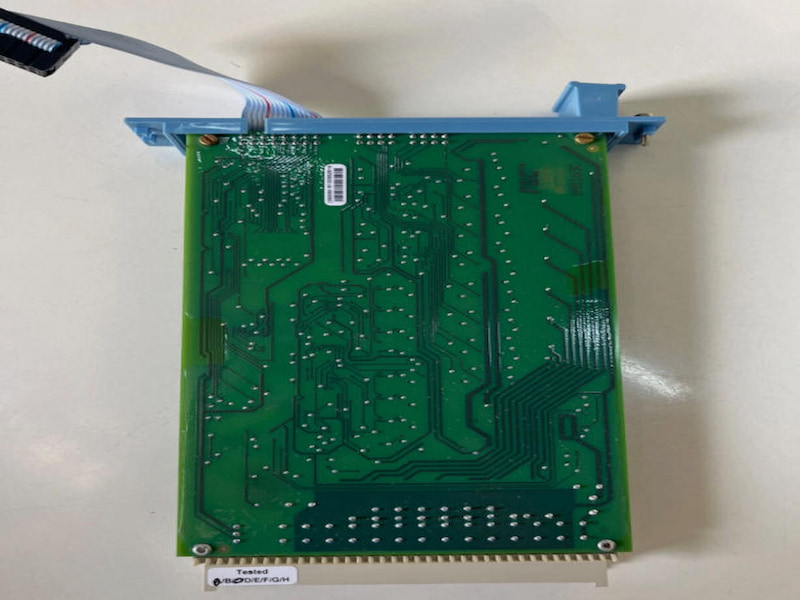

Honeywell FC-SDO-0824 Digital Output Module

Honeywell FC-SDO-0824 Digital Output Module

Description

FC-SDO-0824 is a 8-channel safety digital output module specifically designed for the Safety Manager safety instrumented system of Honeywell. It belongs to the safety IO hardware of the SIS system and is used to output safety control signals to drive on-site actuators.

The module is equipped with 8 independent 24VDC solid-state output channels. The maximum output of each channel is 550mA. It has a fault-safe power-off shutdown mechanism and can drive devices such as solenoid valves and trip relays, meeting the SIL3 safety level requirements. It is widely used in the ESD emergency stop and fire-gas interlock safety circuits in the chemical and oil and gas industries.

Features

Compatible with Honeywell Safety Manager SIS safety system, with SIL3 certification for safety output card

8 isolated 24VDC output channels, each channel with a maximum driving capacity of 550mA

Built-in loop diagnosis, short circuit and overload protection, with no interference among individual channels

Equipped with a secondary forced power-off circuit, reliably cutting off on-site loads in case of a fault

Redundant configuration supports hot swapping, allowing for maintenance and replacement without downtime

Wide temperature industrial hardware, suitable for long-term operation in high-risk process control cabinets

Technical Specifications
