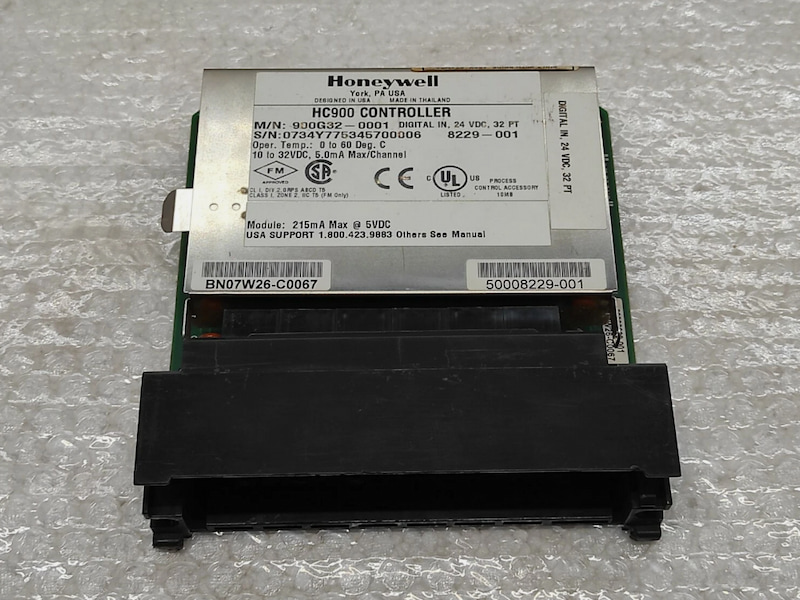

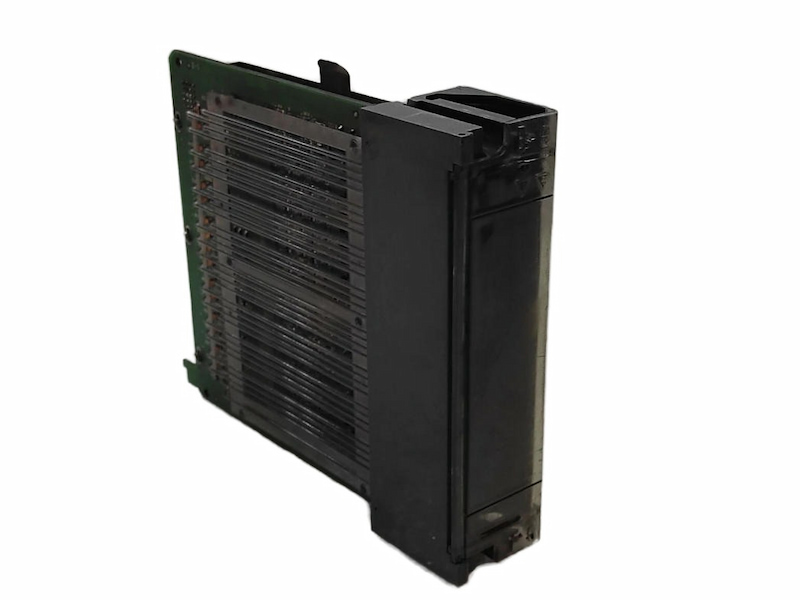

Honeywell 900G32-0001 32 Point Digital Input Module - DC Voltage type

Honeywell 900G32-0001 32 Point Digital Input Module - DC Voltage type

Description

The DC Digital Input module provides 32 inputs separated in to 2 groups of 16 channels each. Each group has a pair of screw terminals for the COM connection. DC power applied between the common terminal and an input cause the input to turn ON. There is a green LED state indicator for each channel on the module to indicate when a digital input is ON. A green blinking status LED on the module indicates when the module is being scanned. An amber blinking status LED indicates when channels are forced and a red status LED when module diagnostics exist. Logic in the controller allows the state to be inverted when necessary.

Inputs per module：32 (sinking)

Input Voltage Range：10 VDC to 32 VDC

Peak Voltage：32 VDC

AC Frequency：NIA

Galvanic lsolation：2 groups of 16 inputs(30VDC max.)

ON Voltage Level：9.5 vDC minimum

OFF Voltage Level：3.5 VDC maximum

input impedance：6.9 K ohms nominal

input Current：1.7 mA @ 12 VDC 3.5mA @ 24 VDC nominal

Minimum ON Current：1.0 mA

Maximum OFF Current：0.7 mA

OFF to ON response time*：5 ms max

ON to OFF response time*：5 ms max

Power Supply Loading：5V; 215mA max 24V; 0mA
