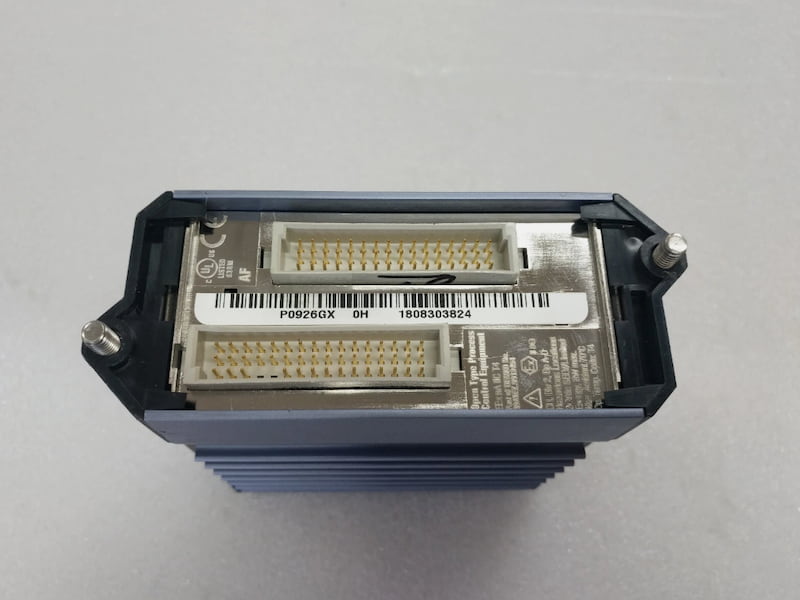

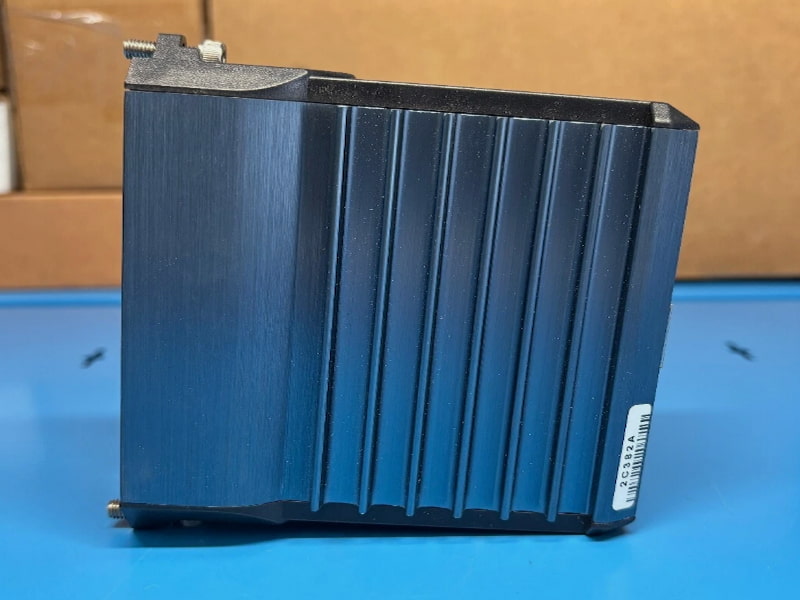

Foxboro FBM233 P0926GX Field Device System Integrator Module

Foxboro FBM233 P0926GX Field Device System Integrator Module

Description

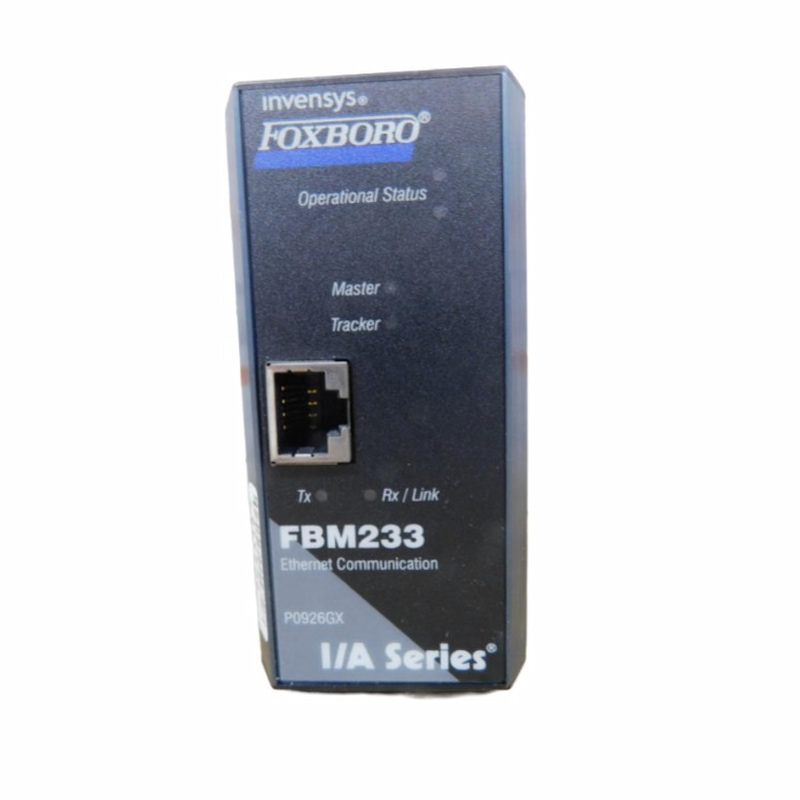

Each FBM233 module has a single 10/100Mbps copper Ethernet connection and a single RJ-45 connector on the front of the module for connectivity to dual-ported Ethernet devices. The FBM233 is connected to Ethernet switches or hubs in order to communicate with one external device or up to 64 external devices.

A pair of modules combine to provide redundancy at the Fieldbus Module (FBM) level. In this configuration, one FBM233 is the Master, and the other is the Tracker module. Input points on the control station are updated from the device inputs received on the network connected to the Master. Device output points, depending on the I/O driver, are written by both the Master and Tracker module. Role switching is automatic if problems are detected (for example, loss of heartbeat from any device) by the I/O driver, or the user can switch the roles at any time via SMDH.

Features

• Redundant 10 Mbps or 100 Mbps Ethernet network transmission rate to/from field devices
• Communicates with up to 64 field devices
• I/O software driver is downloadable from a library of available protocols
• Up to 2000 DCI block connections
• Integrates field device data into an I/A Series control database using Ethernet connectivity
• Field mounted
• Class G3 (harsh) environments.
