Foxboro CP60P0961FR Control Processor

Foxboro CP60P0961FR Control Processor

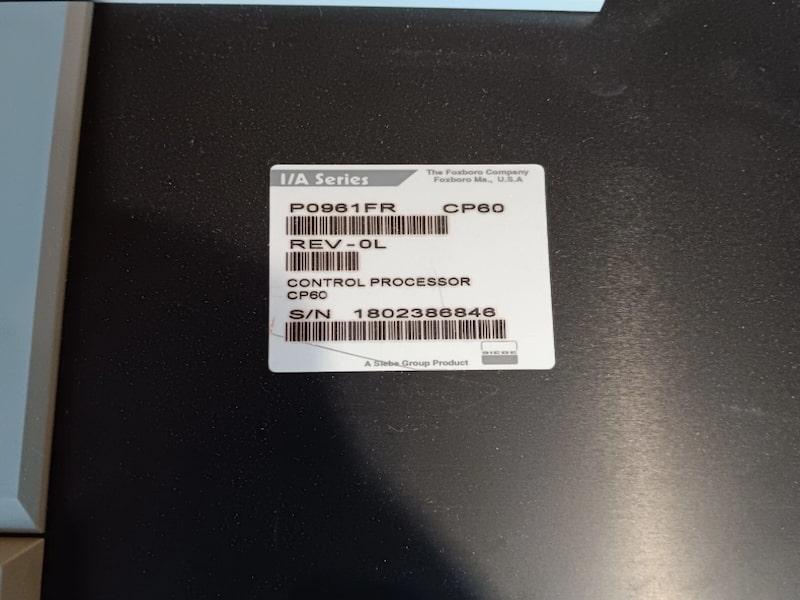

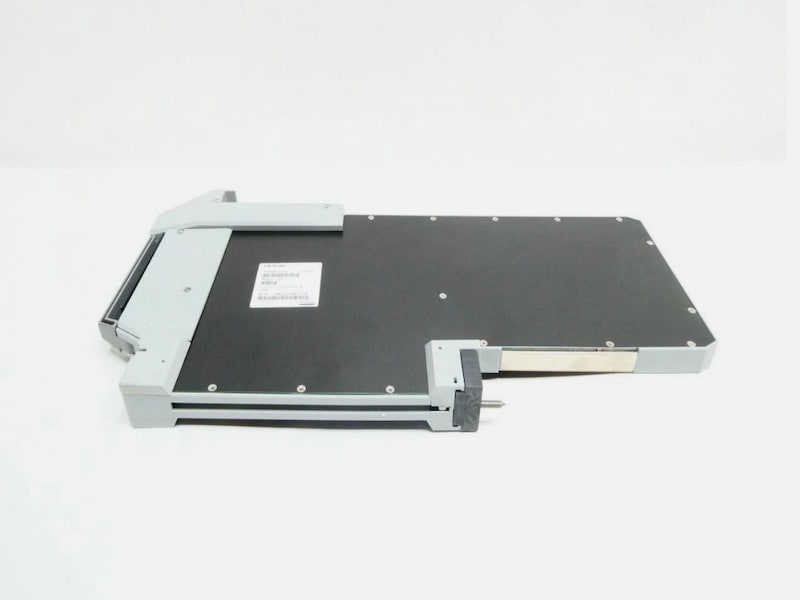

Description

The Control Processor 60 is an optionally faulttolerant station that performs regulatory, logic, timing, and sequential control together with connected Fieldbus Modules (FBMs). It also performs data acquisition (via the Fieldbus Modules) and alarm detection and notification.

The Control Processor 60 supports two basic types of FBMs, those included in the DIN rail mounted FBM subsystem (FBM201, FBM202, and so forth), and Y-Module form factor FBMs (FBM01, FBM02, and so forth). The CP60 also supports communication with the Hydrostatic Interface Unit (HIU), Mass Flowmeter, Panel Display Stations, Cluster I/O Migration, SPECTRUM Migration, and Competitor Migration DCS Fieldbus Modules.

The Control Processor 60 communicates with all associated devices via a 10 Mbps Ethernet trunk Fieldbus. The interface between the devices (FBMs) and the 10 Mbps Ethernet trunk Fieldbus is via Fieldbus Communications Modules (FCM10E or FCM10Ef modules) and/or DIN Fieldbus Converter Modules (DCM10E or DCM10Ef) or Fieldbus Isolators (FBI10E modules).

The non-fault-tolerant version of the Control Processor 60 is a single-width processor module. The fault-tolerant version consists of two single-width processor modules.

 Technical Specifications
