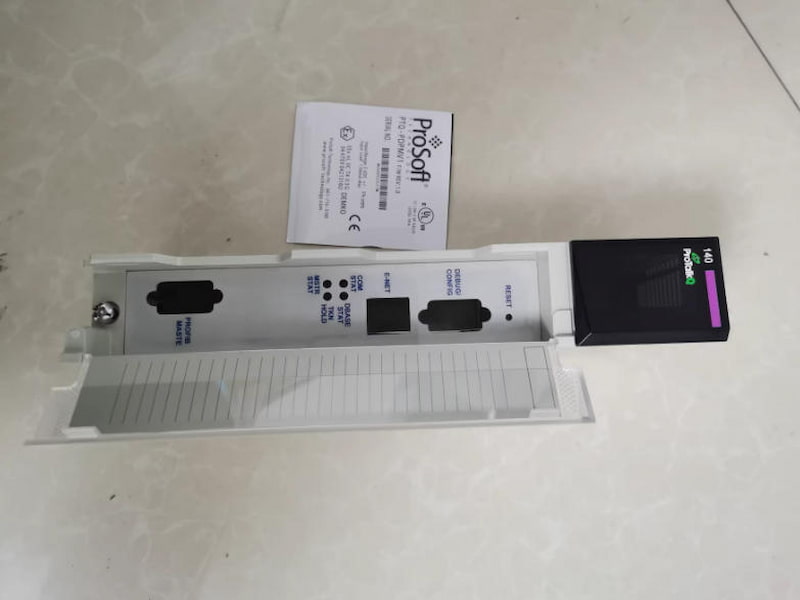

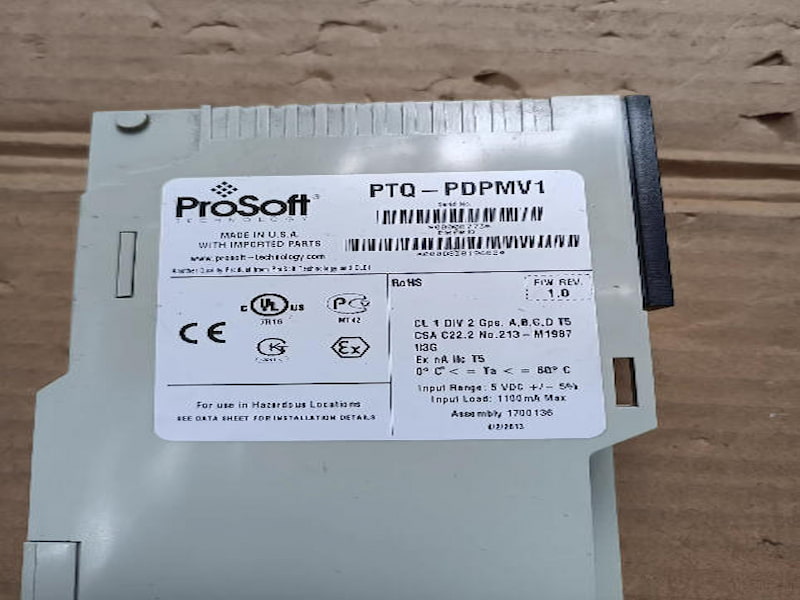

Allen-Bradley PTQ-PDPMV1 Interface Module for Quantum

Allen-Bradley PTQ-PDPMV1 Interface Module for Quantum

Description

The PROFIBUS DPV1 Master module is a powerful communication interface for Quantum ® processors. Developed under license from , the module incorporates proprietary backplane technology that enables powerful data exchange with processors.

The module supports complete Master specifications according to IEC 61158. Acyclic parameter data can be transferred with Class 1 or Class 2 DPV1 services, allowing processors to easily communicate with slave devices supporting PROFIBUS DPV0/V1 protocol.

The module acts as an input/output module between the PROFIBUS network and the processor. Data transfer from the processor is asynchronous with the I/O data transfer on the PROFIBUS network.

Functional Specifications

• Easy-to-use drag and drop Busview configuration interface via ProSoft Configuration Builder software (see PSW-PCB Datasheet)

• Monitoring and modification of process data and DPV1 acyclic data with online slave diagnostics

• Supports PROFIBUS PA slaves on the network through DP/PA coupler or link

• Supports up to 125 slave devices with repeaters

• Supports extended diagnostic data (DPV1)

• Supports all standardized baud rates, up to 12 Mbits/s

• Auto baud detection at all valid PROFIBUS DPV1 rates

• Supports PROFIdrive 3.1 compliant parameter read and write operations

• Supports Sync and Freeze commands

• Alarm indications and confirmations handling (DPV1)

• Supports Multicast and Broadcast telegrams (DPV1)

• CRC checksum determination of slave configuration consistency to processor

• FDT/DTM PROFIBUS Master transport communication DTM software included (Product Number PSW-CDTM-PDPM)
