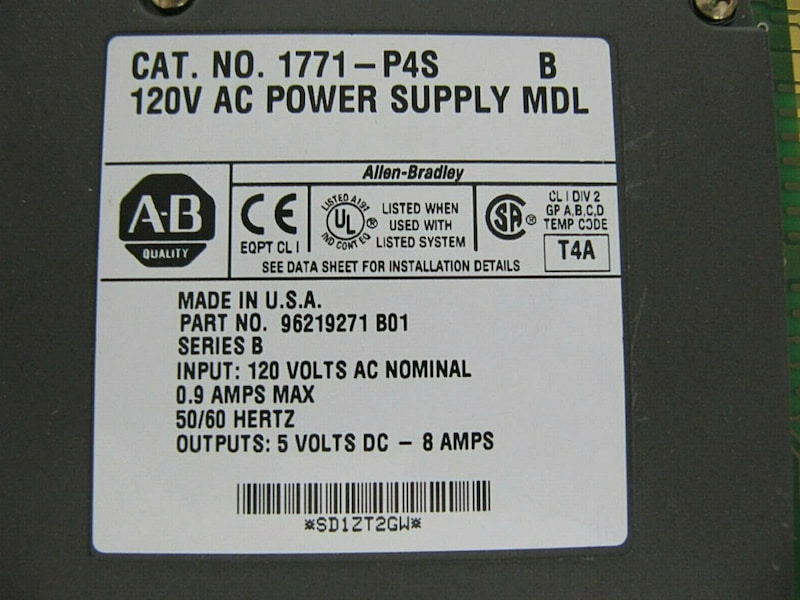

Allen-Bradley 1771-P4S Power Supply Module

Allen-Bradley 1771-P4S Power Supply Module

Description

Power Supply, Slot, 8A, 120V AC：

Require no space outside the I/O chassis.

Connect directly to the I/O chassis backplane.

Contain output-power indicators that indicate if 5V DC is being supplied to the backplane.

Can be paralleled (using 1771-CT cable) to provide up to 16 A of current per chassis (1771-P4S, -P6S, - P4S1, -P6S1).

Single failure-proof chassis power of up to 20 A of current per chassis using redundant configurations (1771-P4R, -P6R).

Install the Power Supply：

set the jumpers

place the power supply in a chassis

connect a paralleling cable (if using a second supply)

connect input power

Technical Specifications
