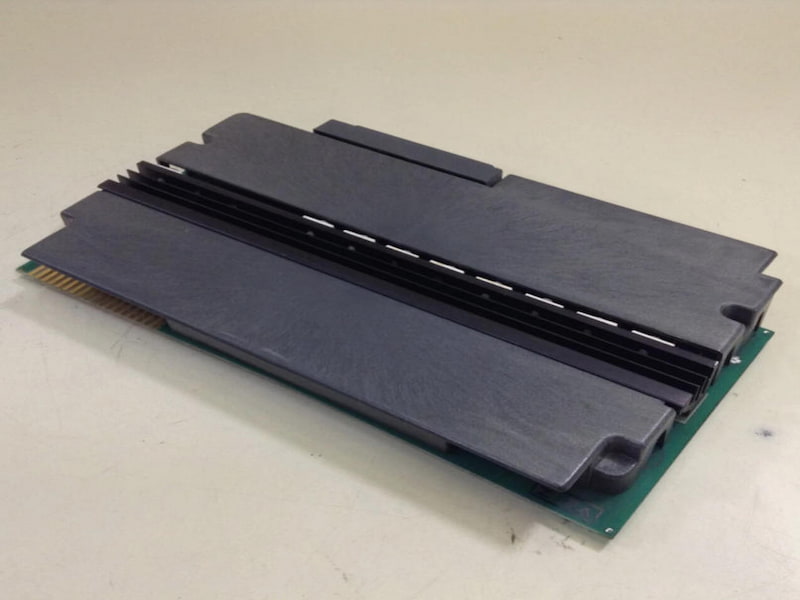

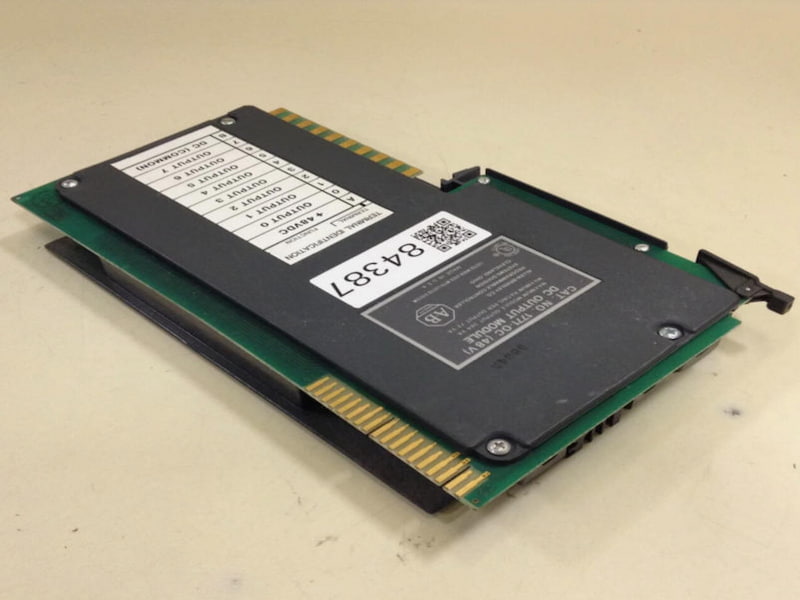

Allen-Bradley 1771-OC DC Output Driver Module

Allen-Bradley 1771-OC DC Output Driver Module

Description

1771 digital dc output modules control the ON/OFF status of dc user devices. Typical output devices include:

• motor starters

• solenoids

• indicators

Installation Information

1. Turn off power to the I/O chassis.

2. Position the module so that the circuit board on the rear of the module lines up with the top and bottom card guides in the chassis.

3. Do not force the module into its backplane connector. Apply firm, even pressure on the module to seat it properly.

4. Snap the chassis latch over the top of the module to secure its position.

5. Connect the wiring arm to the module.

6. Make wiring connections to the field wiring arm.

Technical Specifications
