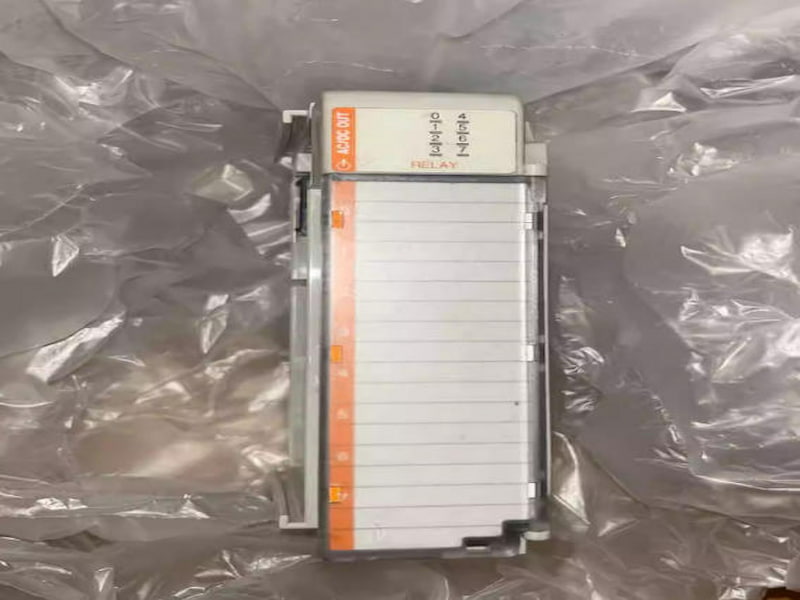

Allen-Bradley 1769-OW8 AC/DC Relay Output Module

Allen-Bradley 1769-OW8 AC/DC Relay Output Module

Description

Each I/O module includes a built-in removable terminal block with fingersafe cover for connections to I/O sensors and actuators. The terminal block is behind a door at the front of the module. I/O wiring can be routed from beneath the module to the I/O terminals.

• Once the modules are locked together, the system becomes a rugged assembly.

• Upper and lower tongue-and-groove slots guide the module during installation and attach the module to the system.

• Removable terminal blocks help ease the wiring task.

• Self-lifting, field-wire pressure plates cut installation time.

• The patented bus connector with the lock function enables consistent and system communication.

• A color bar is provided on the front of the module.

• Digital and field circuits are optically isolated.

Features

• Individually configurable channels

• Ability to enable and disable channels individually

• Onboard scaling

• Auto calibration of inputs

• Online configuration

• Selectable input filters

• Overrange and underrange detection and indication

• Selectable response to a broken input sensor

• Selectable power source

• Input modules offer both single-ended or differential inputs

• Ability to direct output device operation during an abnormal condition

• High accuracy ratings
