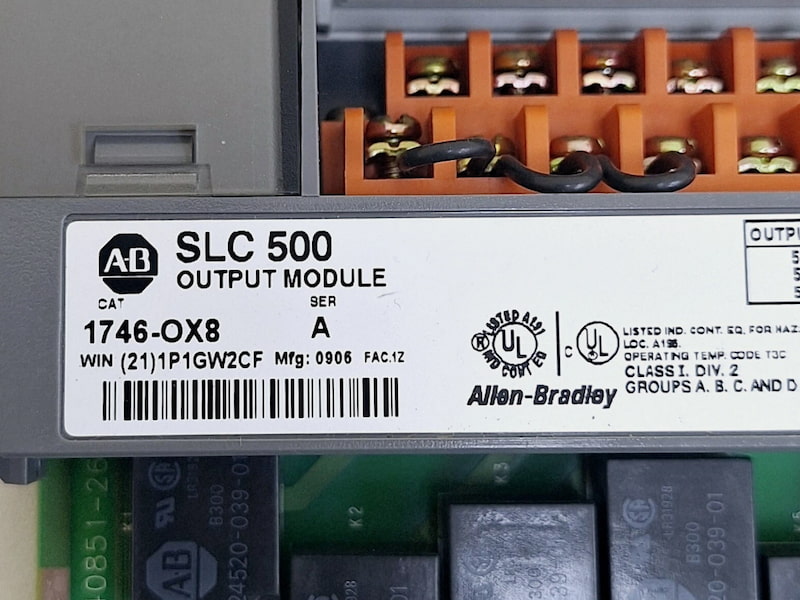

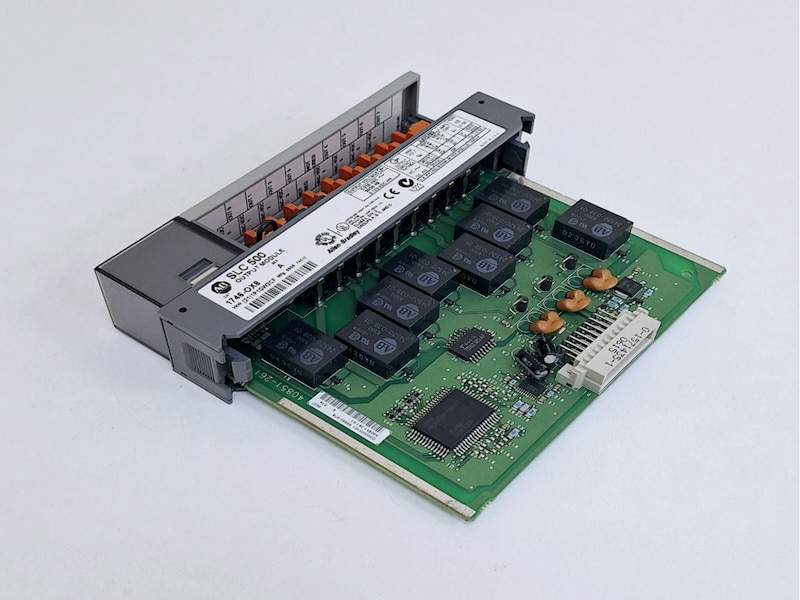

Allen-Bradley 1746-OX8 AC/DC Relay Output Module

Allen-Bradley 1746-OX8 AC/DC Relay Output Module

Description

Digital I/O modules are available with 4, 8, 16, or 32 channels and in a wide variety of I/O voltages (including AC, DC, and TTL). Combination modules with 2 inputs/2 outputs, 4 inputs/4 outputs, and 6 inputs/6 outputs are also available.

Terminals on the 4, 8, 12, and 16-channel modules have self-lifting pressure plates that accept two 14 AWG (2 mm2) wires. LED indicators on the front of each module display the status of each I/O point.

32-channel I/O modules are equipped with a 40-pin, MIL-C-83503 type header and a removable wiring connector (1746-N3). The connector can be assembled with the wire type and length of your choice.

Output modules are available with solid-state AC, solid-state DC, and relay contact type outputs. High current solid-state output modules, catalog numbers 1746-OBP16, 1746- OVP16, and 1746-OAP12, have fused commons with a blown fuse LED indication.

SLC Digital Contact Output Modules (8) Isolated Relay Output - 5- 250V AC, 5-125V DC

• Wide range of replacement power supplies, chassis, communications modules, I/O cards and accessories available
• EtherNet I/P Adapter (1747-AENTR) available to convert an existing system to distributed I/O
• Flexible options for Analogue and Digital I/O cards to modify and expand system capabilities
• Continued support from NHP and Rockwell Automation, including lifecycle management strategies

Technical Specifications
